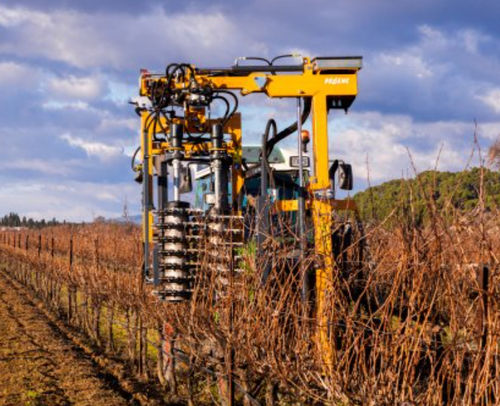

Tractor-mounted pre-pruner DISCO

Overview
The DISCO and VISIO pre-pruners are tractor-mounted pre-pruners designed for in-the-row use on wide-row vineyards. The DISCO model provides an economical, lightweight solution for varied and difficult terrain, while the VISIO model delivers higher power and faster operation with improved cut quality and debris crumbling performance.

Key benefits

• Working speed: up to 5 km/h with DISCO and up to 6 km/h with VISIO
• Superior cutting power even in dense vegetation
• Up to 60% time saving for pruning compared with hand work

DISCO (advantages and features)

• Specially shaped discs ensure good grip of vine shoots and a clean cut
• Long service life of discs: no sharpening and minimal maintenance required
• Adjustable stacking of discs to optimise cutting quality and improve removal of tendrils
• Adjustable spacing between the two lower discs allows a clean cut closer to the cordon

VISIO (advantages and features)

• Discs enable fine crumbling of vine shoots and improved cleaning of trellis lifting wires
• Equipped with PRADINES blades sharpened on both sides, doubling blade service life
• Low rotational speed of cages reduces debris scattering and increases safety
• Blade-against-blade cutting system does not generate sawdust, preventing radiator clogging

Optional systems and ergonomic features

• Post detector (optional): automatic opening at posts that adapts to post diameter; cleans shoots around posts more effectively than manual work; adjustable for several post types; cutting element rotation proportional to tractor forward movement to avoid pulling branches; anti-impact safety device on each detector; enables day and night work without loss of precision
• Automatic cordon tracking (optional): cutting height automatically adjusts to cordon height for final-pruning-like results; allows comfortable day and night operation without loss of precision
• Lateral cutter bars (60 cm) to cut hanging vine shoots and save pruning time (option)
• Lateral discs (45 cm) available for dense plants (option on VISIO)
• Multiviti coupling: coupling/uncoupling without wrench; hydraulic connectors on MULTIVITI chassis coupling plate; safe, ground-accessible operation
• Intuitive controls: joystick enables one-click control of all pre-pruner functions

Performance and ergonomics

• High cutting capacity on hanging vine shoots
• Low maintenance requirements for DISCO discs
• Robust shock protection systems provided as standard
• Delivered on pallet stands for transport and storage

Specifications / technical details

• DISCO (overview by version)
  Models: PLD 20 | PCD MULTIVITI | PLD MULTIVITI
  Shaft head: Long | Short | Long
  Number of pairs of beveled discs (100 mm spacing): 5 to 9 | 3 to 6 | 5 to 9
  Number of pairs of beveled discs (50 mm spacing): 5 to 17 | 3 to 11 | 5 to 17
  Electric control of all functions: standard ● | ● | ●
  Disc speed regulation: manual | At control console | At control console
  Automatic post detection by vision: - | option o | option o
  Automatic cordon tracking by vision: - | - | option o
  Pair of opening wheels at post: - | option o | option o
  Slope correction: option o | option o | option o
  Pairs of lateral cutting bars length 60 cm: option o | - | option o
  Impact protection: • (standard) | • | •
  Hitch: Chassis 20 | MULTIVITI chassis 20 and 40 | MULTIVITI chassis 20 and 40
  Delivered on pallet stands: • | • | •
  Legend: ● standard, o optional, - not available
• VISIO (overview by version)
  Models: TCV MULTIVITI | TLV MD MULTIVITI | TLV HD MULTIVITI
  Shaft head: Short | Long | Long
  Number of pairs of crumbling discs: 3 to 6 | 5 to 9 | 7 to 9
  Electric control of all functions: • | • | •
  Disc speed regulation: At control console | At control console | At control console
  Automatic post detection by vision: option o | option o | option o
  Automatic cordon tracking by vision: option o | option o | option o
  Pair of opening wheels at post: - | option o | option o
  Slope correction: option o | option o | option o
  Pairs of lateral cutting bars length 60 cm: - | option o | option o
  Pairs of lateral discs diameter 45 cm: - | - | option o
  Pair of lower discs: - | option o | option o
  Impact protection: • | • | •
  Hitch: MULTIVITI chassis 20 and 40 for all versions
  Delivered on pallet stands: • | • | •
  Legend: ● standard, o optional, - not available
