Straddle tractor OPTIMUM 140

vineyardcompactwith cab

Overview

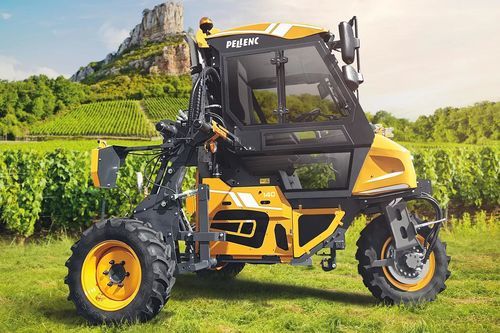

The PELLENC OPTIMUM 140 is a high-clearance straddle tractor engineered for narrow vineyards. Lightweight and compact, it minimises soil compaction and enables precise work close to the vines. The 3-wheel architecture improves steering on headlands and allows tilt correction up to 10%. Large PTO and auxiliary hydraulic flows support a wide range of implements for year-round vineyard operations.

Cab & Comfort

• Pressurised, filtered cab compliant with category 4 (EN15695-1:2009)
• Variable track: 0.90–1.50 m
• Tilt correction up to 10%
• Operator station positioned above the rows for clear visibility
• Control console with on-board computer and HMI touchscreen
• Panoramic windows for wide field of view
• Pneumatic anti-vibration seat with ergonomic armrest, heating and air conditioning, radio and 12 V socket, sun visor and fire extinguisher

Mobility & Agility

• Lowered driving position and cradled engine for reduced centre of gravity and better stability on slopes
• Turning angle up to 60°; minimum turning radius 2.5 m for narrow headlands
• Independent 3-wheel drive with POCLAIN TWINLOCK transmission for smooth, slip-free operation
• Gradeability up to 40% (dependent on implements, weight distribution and soil type)

Technical characteristics

• Deutz Stage 5 engine with maximum torque from 1600 rpm
• Fuel tank: 60 L (typical working day autonomy under normal conditions)
• Particulate filter fitted
• PTO hydraulic capacity: up to 90 L/min
• Auxiliary hydraulic flow: up to 40 L/min, adjustable via HMI (alternative spec: 0–45 L/min with reversal)
• Centralised front lubrication for steering

Hydraulics & Multifunction capabilities

• Hydraulic outlets with two independent ranges: main 0–90 L/min (with reversal) and auxiliary 0–45 L/min (with reversal)
• Load-sensing PTO pump
• Combined tool operation: 2 double-acting + 5 single-acting spool valves
• Quick hitching and hydraulic couplers positioned for easy access (left side and behind the cab)

Safety

• Cab structure and roll bar compliant with standard NFU-02252
• Emergency stop on steering column
• One-piece chassis for increased structural strength
• Automatic parking brake (engages when joystick in neutral) with manual option

Compactness & Dimensions

• Wheelbase: 4.00 m with 3-wheel architecture for exceptional manoeuvrability
• Overall length: 3.36 m
• Minimum turning radius: 2.5 m

Applications & Implements

• Ground maintenance: PELLENC quick hitch and remote control of tool carriers; suitable forward speeds for soil preparation (4–8 km/h)
• Mowing and trimming: rear knife trimmer and front cutter-bar options; gauge wheel and vertical lift at row ends for precise cuts
• Spraying: PERFECT AIR BIO system for controlled treatments, simultaneous spraying of up to 5 rows, low power demand (under 17 hp); tanks: 2 × 250 L + 50 L clean water tank
• Flexible boom lines with directed spray, anti-drip and individual shut-off per spray level

Operator features & ergonomics

• Front and rear quick hitch system with wide door and access ladder
• HMI for precise hydraulic and flow adjustment; multifunction joystick for instant control
• Electrically adjustable, wide-angle mirrors and LED work lights for day/night operation

Technical specifications

• Model: OPTIMUM 140
• Brand: PELLENC
• Engine: Deutz Stage 5
• Fuel tank capacity: 60 L
• PTO hydraulic capacity: up to 90 L/min
• Auxiliary hydraulic flow: up to 40 L/min (adjustable via HMI); alt. 0–45 L/min with reversal
• Hydraulic outlets: main 0–90 L/min with reversal; auxiliary 0–45 L/min with reversal
• Spool valves: 2 double-acting + 5 single-acting
• Variable track: 0.90–1.50 m
• Tilt correction: up to 10%
• Turning angle: up to 60°; minimum turning radius: 2.5 m
• Gradeability: up to 40% (depending on implements and soil)
• Wheelbase: 4.00 m; overall length: 3.36 m
• Unladen weight: approx. 2,900 kg
