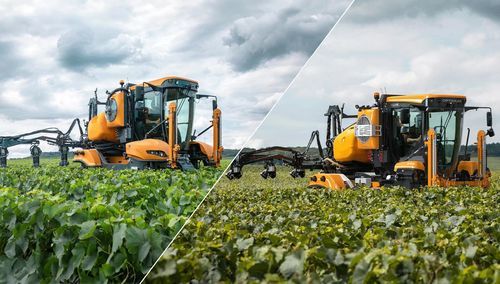

Tractor-mounted sprayer E-SPRAYER series

vineyardfor viticultureelectric

Overview
The E-SPRAYER XD and XM are dedicated vine sprayers designed for narrow-row vineyards. Modular and compact, they offer configurable tank options and low energy consumption for economical field operations.

High capacity, configurable tanks

• Mechanically welded tank
  • Compact configuration for steep slopes
  • Capacity: 1,230 L
  • 150 L clear-water rinse tank onboard
• Rotomoulded tank
  • Large-volume configuration
  • Capacity: 1,500 L
  • 150 L clear-water rinse tank onboard
• Optional integrated incorporator

Boom handling and integration

• Light, balanced and compact boom for narrow rows
• Simple electrical wiring and tractor integration
• Dedicated spray cell integrated with the tractor for stable positioning

Energy efficiency and savings

• Electrical power supply for instant control
• Electrified product-circuit controls to simplify cleaning
• Balanced air speeds for targeted application
• Low power requirement example: operation possible with 20 kW

Productivity configurations

• E-SPRAYER XM
  • Adjustable canopy spacing: 0.8 m to 1.20 m
  • Rows treated per pass: 6–7 or 8–9 depending on configuration
• E-SPRAYER XD
  • Adjustable canopy spacing: 0.8 m to 1.50 m
  • Rows treated per pass: 6–7 or 8–9 depending on configuration

Modules & key systems

• Vine processing module
  • Adjustable downspout spacing to match planting width and canopy density
  • Flexible downspouts with nozzle outlet positioned between two air streams
  • Continuous row detection to avoid missed rows
• Electronic Proportional Advance Flow (EPAD)
  • Maintains constant application rate using flow indexed to forward speed
  • One-click automatic calibration from the tractor console (HMI)
• Ground-level centralised installation
  • Operation panel groups valves and controls for all functions
  • Product incorporator allows safe preparation and filling from the ground
• Headland management
  • Automatic boom folding during headland transitions
  • Joystick control: click to stop spray and fold, click to redeploy and resume
  • Spike management controlled from joystick

Technical specifications

• Models: E-SPRAYER XD, E-SPRAYER XM
• Rows treated per pass: 6–7 or 8–9 (configuration dependent)
• Planting width (m): XD: 0.9–1.5 m (variants 0.8–1.2 m possible); XM: 0.9–1.3 m or 0.8–1.2 m depending on configuration
• Maximum processing height (m): XD: up to 1.5 m; XM: depends on configuration
• Application technology: XD: worn jets; XM: carried centrifugal (depends on configuration)
• Downspouts / diffusers: 3–4 diffusers
• Air technology: double diffusers (XD) / electrical modules or double diffusers (model dependent)
• Tank capacity (L): 1,230 or 1,500 L
• Rinse tank: 150 L onboard (10%)
• Automatic functions: peak management, automatic folding, joystick section cut (standard)
• Flow proportional to forward speed: HMI-controlled or optional
• Automatic ground tracking: optional
• Integrated incorporator: optional, configurable
• Tank washing with rotating nozzles: standard
• Fuel / power: designed for low energy consumption (example: 20 kW)
