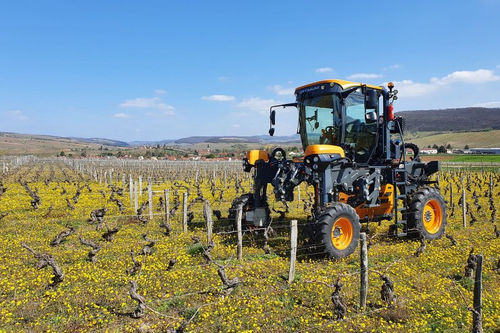

Straddle tractor OPTIMUM 40

mechanical transmissionvineyardcompact

Overview
The latest addition to the PELLENC range of vineyard tractors, the 40 single-row vineyard tractor is the smallest in its category. Designed for use in narrow vineyards (notably Burgundy, Champagne, Sancerre, Médoc and the Loire region), it is extremely compact and easy to manoeuvre, thanks to its tight turning radius and slope correction. Its lightness means it minimises soil compaction. Versatile, it can be fitted with all the functions essential for vineyard work (mowing, tillage, topping, pre-pruning, augering, shredding) with high hydraulic capacities despite its small size. A model of performance, comfort and safety in all seasons, even in the narrowest and most ‘arrow-shaped’ headlands.

Comfort, visibility and steering to match

• Low weight distribution for greater stability
• All controls within easy reach
• Driving position above the rows with 360° visibility
• Instant, infinitely variable tool adjustment from the multifunction joystick
• Transparent tunnel for soil maintenance visibility
• Optimum cab comfort: anti-vibration pneumatic seat with ergonomic armrest

Secure cabin

• One-piece chassis and cab canopy with anti-crush bar
• Emergency stop on steering column
• Manual parking brake
• Sun visor, fire extinguisher and seat with two-point seat belt
• Electrically adjustable, wide-angle, twin-mirror exterior mirrors
• Day and night visibility
• 7 working lights
• Tilt correction of up to 10% using joystick

The most modular in its category

• Wheelbase of 2.55 m
• Overall length just 3.60 metres
• Fixed/modular track
• Minimum turning radius of 2.6 metres: ideal for the narrowest of headlands
• Cable-operated, fingertip control
• Poclain 4-wheel high-torque transmission
• Excellent power-to-weight ratio
• Gradeability up to 40%

Quick and easy maintenance

• Quick, tool-free access to all lubrication points and filters: air, fuel, hydraulic system and engine oils

The PELLENC Multifunction
All the work in the vineyard with tools adapted to your vineyard:
Soil maintenance

• Remote tool-carrier control system (agricultural type)
• High output: forward speed from 4 km/h to 8 km/h
• Optimum visibility of tools
• 2 pairs of interceps and possibility of combined work
• 4 crumbling discs

Tools
Mower

• Compact design
• Excellent visibility
• Gauge wheel for working at the desired height
• Vertical lifting of cutting units at row ends

Trimmer

• Optimised visibility
• Working speed up to 8 km/h
• Trimmer with knives or alternative cutting bars

DISCO pruner

• Lightweight and compact
• Clean cut
• Boron steel discs for exceptional durability: no sharpening and minimum maintenance
• Adjustable disc stacking: optimises elimination of tendrils, clean cut as close as possible to the bead

Caractéristiques / spécifications techniques

• Hydraulic outlets with 2 independent flow rates: Main 0 to 90 l/min with direction reversal; Auxiliary 0 to 45 l/min with direction reversal
• Pump speed independent of engine speed
• Combined tool operation possible: 4 double-acting spool valves for implements; 5 single-acting spool valves for tool carriers
• Easy implement hitching: fast hitching/unhitching
• Wheelbase: 2.55 m
• Overall length: 3.60 m
• Fixed / modular track (modular assembly available) and different underframe heights
• Minimum turning radius: 2.6 m
• Poclain 4-wheel high-torque transmission
• Excellent power-to-weight ratio and gradeability up to 40%
• Low weight distribution to minimise soil compaction
• Driving position above the rows with 360° visibility; transparent tunnel for soil maintenance visibility
• Optimum cab comfort: anti-vibration pneumatic seat with ergonomic armrest
