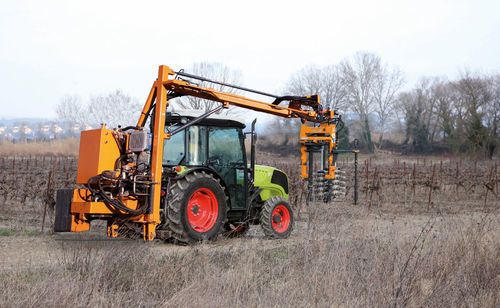

Vineyard pruning machine MULTIVITI series

mountedhydraulic

Overview
MULTIVITI is a single adaptable chassis designed to accept multiple vineyard implements, enabling year-round vineyard operations with rapid tool changes. Attachment and detachment are quick and can be performed by one operator, improving operational efficiency and machine utilisation.

Key benefits

• Five PELLENC MULTIVITI tools cover pre-pruning, pruning, trellising, leaf removal and trimming operations.
• Innovative MULTIVITI coupling system enables a single operator to attach or detach tools in under three minutes.

Ergonomic control

• Controls positioned within easy reach for the operator.
• Ergonomic 13-button joystick for direct access to functions.
• Automatic reassignment of joystick functions according to the connected tool.
• Backlit display shows settings and active functions clearly.

Safety and reliability

• Mechanical locking of tool coupling by two locking rods.
• Hydraulic and electrical connections are accessible at a working height for safe and quick linking.
• Safety cylinder allows tool release in case of entanglement.
• 12V socket on top of the chassis for powering a work light for night operations.

Quick coupling

• Coupling and uncoupling performed in approximately three minutes.
• All hydraulic connectors are located on the MULTIVITI chassis coupling plate for simplified hookups.
• Tools can be powered and secured using the chassis hydraulics.

MULTIVITI 20 and 40

• MULTIVITI 20: compact front-mounted chassis suitable for inter-row widths from 1.60 m. For tools requiring hydraulic flow beyond the tractor supply, an optional separate hydraulic power pack is available.
• MULTIVITI 40: modular rear 3-point-mounted chassis providing enhanced stability and visibility; this model is equipped with its own hydraulic power pack.

MULTIVITI 2 hydraulic power unit
The MULTIVITI hydraulic power pack increases hydraulic capacity without changing tractors, offering a pump flow up to 76 l/min. An oil cooler is fitted as standard. A central or lateral weight holder is available as an option.

Tilt correction
Two options are available to compensate for sloping vineyards or rows bent by wind; both are offered as options to improve cutting geometry on uneven ground.

Filtration
A hydraulic filter is fitted as standard on the chassis to protect tools from contamination and extend component life.

MULTIVITI tool range

• Disco pre-pruner
  • Working speed up to 5 km/h even in dense vegetation.
  • Boron steel discs for long service life without sharpening.
  • Clean cutting of vine shoots.
  • Automatic opening around posts with optional artificial vision system.
• Visio pruner
  • Working speed up to 6 km/h.
  • Pradines blades deliver pruning shear quality.
  • Mulching discs remove cut wood, reducing field cleaning.
  • Automatic opening around posts with optional artificial vision system.
• Precision Pruner (TRP)
  • Working speed up to 3 km/h, suitable for day and night use.
  • Can reduce pruning time by up to 90% compared with manual pruning.
  • Cordon tracking by vision system for precision and operator comfort.
  • Designed for intensive daily output.
• Wire lifter
  • Working speed from 3 to 5 km/h.
  • Effective in dense growth; produces a uniform, wind-resistant canopy.
  • Wide range of biodegradable ties available.
• Trimmer with reciprocating cutter bars
  • Working speed up to 8 km/h.
  • Prunes without scattering debris.
  • Reciprocating self-cleaning blades.
  • Frontal impact protection; ultra-lightweight design.
• Trimmer with cutter-bar blades
  • Working speed up to 10 km/h.
  • Optional pivoting lower cutting modules available.
  • Frontal impact protection.
• Soft Touch 2 leaf remover
  • Working speed up to 4 km/h.
  • Automatic row tracking for consistent leaf removal.
  • Easy to clean; fast operator familiarisation for work comparable to hand removal.

Technical features
Parameter | MULTIVITI 20 | MULTIVITI 40
Minimum inter-row width | 1.6 m | 2.5 m
All functions controlled from the joystick | ● | ●
Tilt correction | o | o
Quick attachment system for tools | ● | ●
Chassis attachment to tractor | Front on bracket | 3-point rear
Anti-shock safety system | ● | ●
Support foot | o | ●
● Standard o Optional

Technical specifications

• Series: MULTIVITI.
• Minimum inter-row width: MULTIVITI 20 = 1.6 m; MULTIVITI 40 = 2.5 m.
• Joystick control of all functions: standard on both models.
• Tilt correction: optional on both models.
• Quick tool coupling: standard on both models; coupling/uncoupling in about 3 minutes.
• Chassis attachment: MULTIVITI 20 = front bracket; MULTIVITI 40 = rear 3-point linkage.
• Anti-shock safety system: standard on both models.
• Support foot: optional on MULTIVITI 20; standard on MULTIVITI 40.
• Hydraulic power pack (MULTIVITI 2): pump up to 76 l/min; oil cooler fitted as standard; central or lateral weight holder optional.
• Hydraulic filtration: filter fitted as standard on the chassis to protect tools from contamination.
