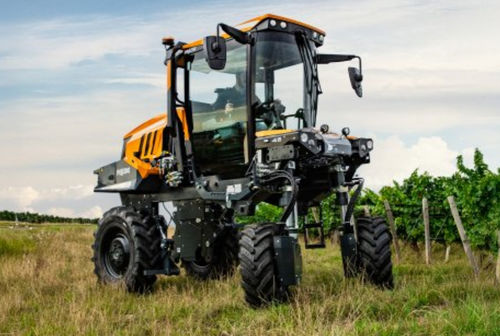

Straddle tractor 45

vineyardcompactwith cab

Overview
The STRADDLE TRACTOR 45 is a compact single-row straddle tractor designed for narrow vineyards. It offers adjustable beam clearance from 1.25 to 1.50 m and an overall length suited to tight row configurations. The machine combines a light footprint with high hydraulic capacity to operate mower, soil preparation, pruning and other vineyard tools while limiting soil compaction.

Comfort and precise control

• Low weight distribution for improved stability
• All controls ergonomically positioned for intuitive use
• Raised driving position providing 360° visibility
• Infinitely variable tool control via multifunction joystick
• Transparent tunnel under cab for real-time tillage monitoring
• Anti-vibration pneumatic seat and ergonomic armrest
• New HMI for accurate hydraulic flow adjustment

Cab configuration and driver environment

• Robust one-piece chassis
• Two cab options: open canopy with anti-crush bar or closed air-conditioned/heated cab with optional Class 4 pressurisation
• Emergency stop on steering column
• Manual and automatic parking brake
• Standard equipment examples: sun visor, fire extinguisher, Bluetooth radio, 12 V socket
• Electrically adjustable wide-angle twin exterior mirrors
• Nine LED work lights for clear visibility
• Cab tilt correction up to 10% via in-cab joystick

Modularity and performance

• 2.55 m wheelbase with 4 wheels for high manoeuvrability
• Fixed or modular track with mechanical chassis adjustment for row spacing from 1.0 to 1.5 m
• Minimum turning radius: 2.6 m
• Cable-assisted controls for immediate precision
• Poclain hydrostatic 4WD transmission delivering high torque
• High power-to-weight ratio and gradeability up to 40%

Maintenance

• Quick, tool-free access to maintenance points
• Easy access to air filter, fuel, engine oil and hydraulic components
• Design aimed at reducing downtime and interventions

Multifunction capabilities and hydraulics

• Up to 8 spool valves: 4 double-acting + 4 single-acting available
• Hydraulic couplers front and rear with quick coupling system
• Remote ground control for tool carriers
• Front, pulled and pushed tool carrier compatibility
• Two independent hydraulic flows: Main 0–76 L/min (reversible), Auxiliary 0–45 L/min (reversible)
• Pump speed independent of engine speed
• Tilt correction 100 mm adjustable from joystick and HMI

Vineyard tools highlights

• Tillage: working speeds 4–8 km/h, excellent tool visibility, interceps and crumbling discs
• Mower: compact design with gauge wheel for cutting height control
• Knife pruner: precise row tracking and fast clean cuts
• Front-mounted reciprocating trimmer: clean cut without spraying, up to 8 km/h
• DISCO pruning machine: boron-steel discs, adjustable spacing
• VISIO pruning machine: fine crumbling discs with PRADINES double-sided blades
• Vineyard sprayer (with Class 4 cab option): twin-blade turbine, 3–4 nozzles, hydraulic boom 1.00–1.50 m, 5-section control, integrated rinsing and GSP speed-proportional flow option

Technical specifications

• Model: STRADDLE TRACTOR 45
• Beam/clearance: 1.25–1.50 m
• Row configuration: single narrow row (1.0–1.5 m vine width)
• Overall dimensions (H x W x L): ~3,100 mm x 1.4–1.9 m x 3.60 m
• Wheelbase: 2.55 m
• Minimum turning radius: 2.6 m
• Engine: Kubota 3.3 L, Stage 5 — 75 hp
• Fuel tank: 75 L
• Hydraulic tank and flows: 45 L hydraulic tank; Main 0–76 L/min, Auxiliary 0–45 L/min
• Transmission: Poclain hydrostatic 4WD, gradeability up to 40%
• Tyres: Front 280/70 R18 — Rear 11.2R24
• Work lights: 9 LEDs
• Spool valves: up to 8 (4 double-acting / 4 single-acting)
• Cab options: open canopy or closed air-conditioned/heated cab with optional Class 4 pressurisation
