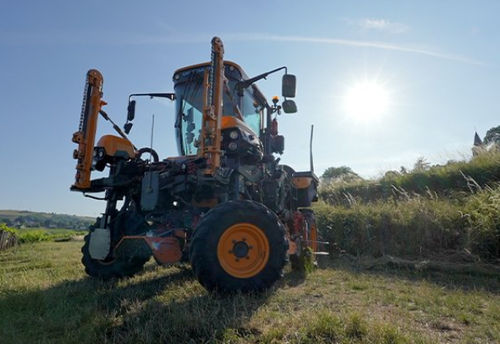

Straddle tractor OPTIMUM 245

vineyard2-row3-row

Introduction
Designed for winegrowers operating in narrow vineyards, the OPTIMUM 245 straddle tractor delivers manoeuvrability, power and multi-row capability. Able to work on two or three rows simultaneously, it supports tasks from tillage to spraying. PELLENC CONNECT enables real-time monitoring of plots and implements, on site or remotely, to optimise each pass.

Exceptional manoeuvrability in narrow vineyards

• Robust, well-balanced chassis with three beam heights: 1,500 mm, 1,600 mm and 1,750 mm; low centre of gravity for stability on slopes
• Optimised steering: short wheelbase, 90° steering angle and reduced turning radius for fast headland manoeuvres
• Hydraulic variable track: inter-row width adjustable from 0.9 to 1.5 m directly from the cab via the EASY TOUCH joystick
• Multi-row operation: configurable to work on two or three rows to increase productivity

Day-to-day cab comfort and safety

• Pressurised Category 4 cab (EN 15695) with effective filtration and reduced noise
• Heated, ventilated and ergonomically designed GRAMMER seat to limit operator fatigue
• Ample storage, Bluetooth radio, USB ports, 12V socket, refrigerated compartment and LED interior lighting

Panoramic vision and enhanced visibility

• Central cab with curved glazing and slim pillars for an extended field of view
• 12 LED work lights and optional HD colour manoeuvring cameras with night vision for day/night operation
• Electrically heated mirrors and colour manoeuvring cameras

Intuitive straddle steering and PELLENC CONNECT

• EASY DRIVE multifunction joystick and EASY TOUCH 10" touchscreen for rapid adjustments
• Customisable controls per implement and integrated maintenance diagnostics
• Real-time monitoring and data feedback via PELLENC CONNECT

Power, traction and stability

• Perkins Stage V 136 HP engine delivering high torque and optimised fuel consumption
• POCLAIN 4-wheel drive and TWINLOCK traction control for optimum traction
• Low centre of gravity for enhanced stability on slopes

Versatility and compatible implements

• Designed for mowing, topping, pruning, spraying and tillage; broad compatibility with vineyard implements
• Equipped with push, pull and rear tool carriers to adapt to multiple attachments
• E-SPRAYER electric sprayers: reduced drift, optimised dosage and rapid application for narrow rows
• MULTIVITI 12 chassis: centralised control and safe implement attachment from the cab; compact and ergonomic design
• F34_C DRIVE pruner: optimised cutterbars for rapid topping while preserving vine quality
• Pre-pruners for narrow vineyards: fast and precise, with several cutting systems and optional detection systems

Pre-pruner cutting systems and detection options

• DISCO cutting system:
  • Suited to difficult terrain, including slopes
  • Lightweight and compact for easy passage
  • Durable disc system delivering clean cuts and low maintenance
  • High-quality steel discs for longevity
• MARGUERITES cutting system:
  • High-quality cut and shredding, even in dense vegetation
  • Blade/antiblade design limits debris and protects wires
  • Ideal for a neat finish
  • Double-sharpened Pradines blades for extended life and reduced upkeep
• Detection systems (model/options dependent):
  • Optical detection: automatic opening as posts pass for precise clearance around posts; settings adjustable
  • 2-row magnetic detection: for vineyards trained on metal posts; ultra-sensitive magnetic sensors enable automatic opening/closing of cutting heads at speed

Technical specifications

• Model name: OPTIMUM 245
• Height under beam: 1 500 mm; 1 600 mm; 1 750 mm
• Number of rows: double to triple row
• Homologation: T4-1
• Inter-row width: 0.9 to 1.5 m (hydraulic variable track)
• Overall height: 3 505 mm
• Overall width: 2 530 mm
• Overall length: 3 665 mm
• Pneumatic seat: Yes
• Cab access ladder: Yes
• Electric mirrors: Yes
• Trip computer and multifunction joystick: Yes
• Protective hoop: NF U02-052 standard
• Work lights: 14 total
• Parking brake: Automatic
• Minimum turning radius: 3.4 m
• Gradeability (crossing capacity): 40 %
• Wheelbase: 2.56 m
• Road speed: 30 km/h
• Engine displacement: 3.6 L
• Engine technology: Stage 5
• Engine power: 136 Hp
• Speed limiter: Yes
• Fuel tank: 2 x 65 L
• 4-wheel drive POCLAIN: Yes
• TWINLOCK anti-skid system: Yes
• Front tyres (options): 280/80 R18 or 340/80 R18
• Rear tyre (options): 280/85 R24 or 340/85 R24 or 380/70 R24
• Pumps and maximum flow rates: LS flow: 130 lpm at 280 bar / 60 lpm at 180 bar; Option: LS flow 60 lpm at 180 bar; Gear pump flow: 35 lpm at 200 bar
• Distributors: 9 hydraulic spool valves standard, up to 12 optional
• Compatible implements (examples): E-SPRAYER SD and SM sprayers; MULTIVITI 12 chassis; F34_C DRIVE pruner; 2-row magnetic pruner; DISCO and MARGUERITES pruners; Horizontal axis mower
