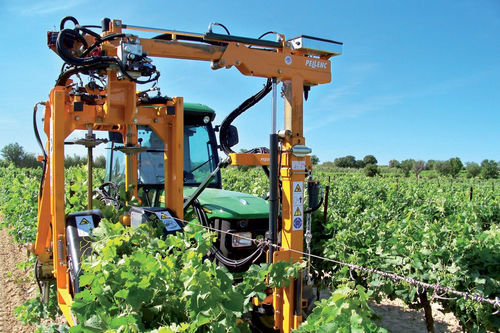

Branch lifter MULTIVITI

Overview The PELLENC wire lifter and trellising machine performs vine lifting, trimming and trellis wire attachment in a single pass. It creates a uniform, wind-resistant canopy, improves spray penetration for pest control and enhances photosynthesis for optimal grape maturity.

Key benefits

• Combines three operations in one pass: lifting, trimming and attaching trellis clips.
• Forms a uniform, wind-resistant canopy to protect vines and improve fruit exposure.
• Working speed: 3 to 5 km/h, effective even in dense vegetation.

Simplicity and handling

• Uses lifting wires permanently installed on both sides of the row; wires can be reused each year.
• Easy handling with one-click clip attachment for fast operation.
• Low hydraulic requirement: 25 l/min.
• Operates quietly for reduced noise disturbance in the vineyard.

Lifting operation

• On entry into the row the two lifting wires are picked up at the push of a button, allowing the operator to position attachment clips as needed.

PELLENC range of clips PELLENC clips are designed to ensure reliable functioning of the wire lifter and trellising machine. Each clip model offers different tensile strength to suit canopy thickness or specific uses such as a first lift.

Adaptation, coupling and controls

• Compatible with several types of steel or nylon lifting wires; works with all posts except those fitted with spacer bars.
• Coupling and uncoupling can be performed without a wrench. All hydraulic connectors are located on the coupling plate of the MULTIVITI chassis for safe, ground-level access.
• Joystick provides one-click control of all machine functions.

Technical specifications

• Topper satellite: standard equipment
• Electric control of all functions: standard equipment
• 2 upper and 2 lower vegetation feeders: standard equipment
• Attachment: MULTIVITI chassis
• Delivered on pallet stand: standard equipment
