Rotary rake 90/5
side delivery

rotary rake
rotary rake
rotary rake
rotary rake
rotary rake
rotary rake
rotary rake
rotary rake
Add to favorites
Compare this product


Characteristics

Technology
rotary
Delivery
side delivery
Working width

2.9 m
(9'06" )

Description

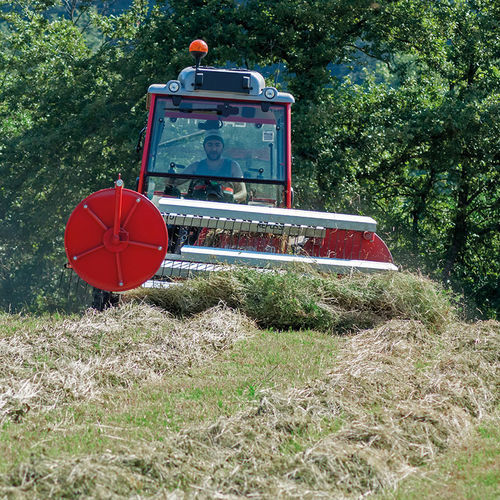

Frontally mounted hydraulic comb side-delivery rake with one raking group. Its standard equipment includes an independent hydraulic plant with a pump, to be directly fitted to the power take-off, that drive the rotation of the reels that operate both in raking and in tedding configuration. Its horizontal part of the three point attachment is pivoting (with limitable oscillation angle). It has two swivelling wheels and their distance from the ground is adjustable by a simple screw system. TECHNICAL SPECIFICATIONS Minimum transport width:2.54 m Number of reels:5 Tines per reel:14 Wheels:Ballons 15×6.00-6 Weight:306 kg ACCESSORIES .Reels speed regulation valve .Independent hydraulic system for single models (without) .Sixth comb kit (for single rake unit) .Larger-diameter silage tine .Quick triangular floating three-point linkage (as an alternative to the standard one) .Quick triangular fixed three-point linkage (as an alternative to the standard one) .Windscreen

VIDEO
