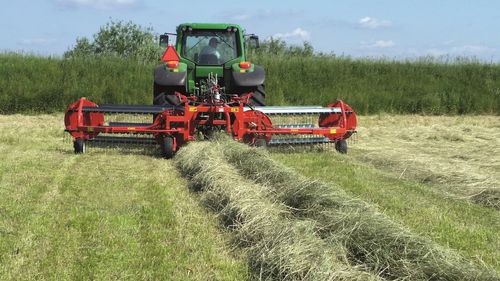

Rotary rake 6000FP BIG

side delivery

Hydraulic comb side-delivery rake to be used both frontally and rearly mounted: this double side-delivery rake with central swath has 10 reels, acted depending by tractor’s hydraulic plant (version without independent hydraulic plant) or independently from the tractor (version with independent hydraulic plant). It has three main swivelling wheels Balloons 18.5×8.50-8 and two lateral wheels 16×6.50-8. The distance from the ground is adjustable by a simple screw system for each wheel independently. TECHNICAL SPECIFICATIONS Minimum transport width:2.54 m Transport height:2.96 m Number of reels:10 Tines per reel:15 Wheels:n. 3 18.5X8.50-8 - n. 2 16x6.50-8 Weight:650 kg ACCESSORIES .Independent hydraulic plant for double or triple rakes .Hydraulic taps to allow single movement of the raking groups .Electric-valves kit to allow single movement of the raking groups from the cabin .Sixth comb kit (for single rake unit) .Larger-diameter silage tine
