Rotary rake 350/9T

side deliverysingle-rotor

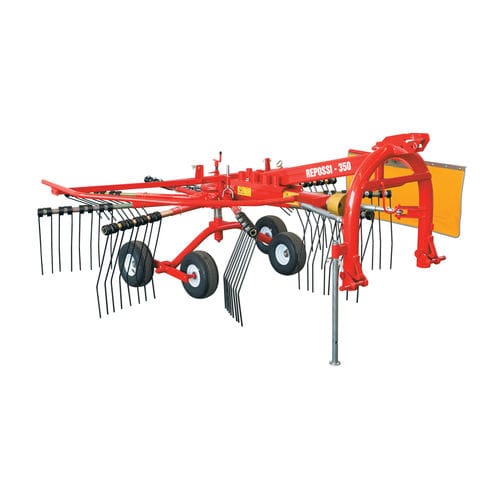

Rear mounted rotary rake with steering frame, acted by the power take-off, with one oil-lubed and height adjustable rotor. It has 9 strong zinc-plated arms with a special profile (like a cardan shaft), that are easily unthreaded for the transport on the public road, on which 4 special steel C85 teeth with double slope shape are mounted. It can work width two different width: 3.50 m or 3.30 m (left swath included) obtained by changing the locking position of the external part of each arm, depending from the quantity of grass in the field and allowing to always obtain windrows of the best size and volume. Two shock-absorbers guarantee easy turns. It has 4 Balloons wheels 15×6.00-6 mounted on a tandem chassy to have perfect operation also on uneven fields and an high tractor speed, a cardan shaft with clutch and a rotor locking device for road transportation. TECHNICAL SPECIFICATIONS Rotor diameter:3.12 / 2.84 m Minimum transport width:1.50 m arms:9 Tines for each arm:4 Wheels:4 tandem wheels 15×6.00-6 Weight:397 kg ACCESSORIES .Adjustable tandem axle .3 point chain .Ground distance regulating handle from the tractor .Sensing front Balloon wheel adjustable in height with special pivot or chain
