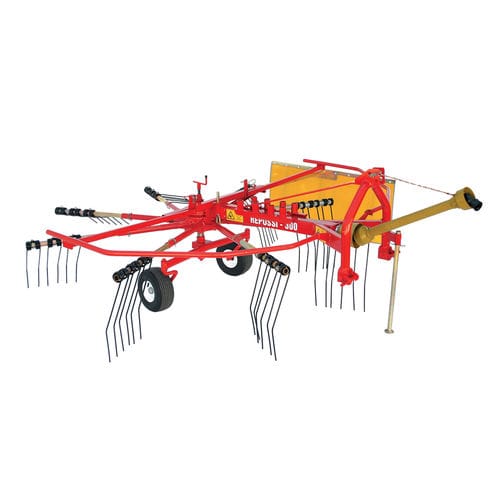

Rotary rake 300/8
side deliverysingle-rotor

rotary rake
rotary rake
rotary rake
rotary rake
rotary rake
rotary rake
rotary rake
Add to favorites
Compare this product


Characteristics

Technology
rotary
Delivery
side delivery
Number of rotors
single-rotor
Working width

2.8 m, 3.2 m
(9'02" , 10'05" )

Description

Rear mounted rotary rake, acted by the power take-off with one oil-lubed and height adjustable rotor. It has 8 strong zinc-plated arms with a special profile (like a cardan shaft), that are easily unthreaded for the transport on the public road, on which 3 special steel C85 teeth with double slope shape are mounted. It can work width two different width: 3.20 m or 2.80 m (left swath included) obtained by changing the locking position of the external part of each arm, depending from the quantity of grass in the field and allowing to always obtain windrows of the best size and volume. It has 2 swivelling wheels 15×6.00-6, a cardan shaft with clutch and a rotor locking device for road transportation. TECHNICAL SPECIFICATIONS Rotor diameter:2.80 o 2.68 m Minimum transport width:1.25 m arms:8 Tines for each arm:3 Wheels:2 swivelling wheels 15×6.00-6 Weight:260 kg ACCESSORIES .3 point chain .Sensing front Balloon wheel adjustable in height with special pivot or chain

VIDEO
