Rotary rake 6000/10L
side delivery

rotary rake
rotary rake
rotary rake
rotary rake
rotary rake
rotary rake
rotary rake
Add to favorites
Compare this product


Characteristics

Technology
rotary
Delivery
side delivery
Working width

4.5 m, 5.2 m
(14'09" , 17'00" )

Description

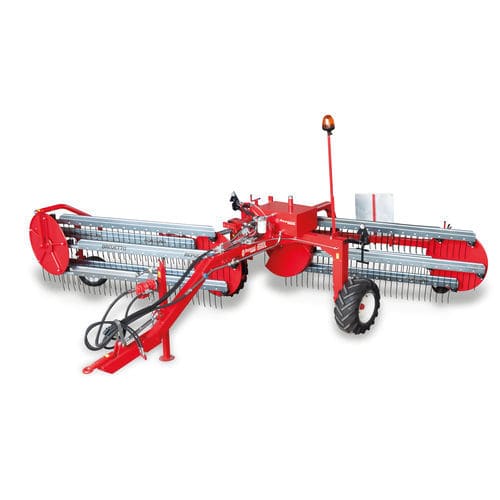

Rear-mounted hydraulic trailed side delivery comb rake with two raking units, controlled from the tractor driving seat. Equipped with independent hydraulics with pump for connection directly to the tractor power take-off, which supplies the hydraulics and moves the combs. The cylinders that raise and lower the wheels and two raking units are controlled by the tractor distributors. It may be fitted with lights for transport on the road. It forms compact swaths on the left of the running direction. TECHNICAL SPECIFICATIONS Minimum transport width:2.05 m Transport height:2.77 m Number of reels:10 Tines per reel:13 Wheels:26x12.00-12/16x6.50-8 Weight:1018 kg ACCESSORIES .Additional ballast for main wheels .Hydraulic taps to allow single movement of the raking groups .Electric-valves kit to allow single movement of the raking groups from the cabin .Larger-diameter silage tine
