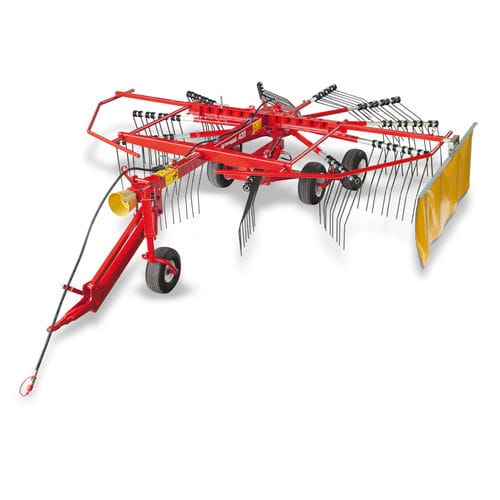

Rotary rake 420/11TI

side deliverysingle-rotor

Trailed rotary rake with one rotor. It is trailed both in working and in transport position; it is acted by the power take-off and have one oil-lubed and height adjustable rotor with 11 strong zinc-plated arms with a special profile (like a cardan shaft), that are easily unthreaded for the transport on the street, on which 4 special steel C85 teeth with double slope shape are mounted. Their working width can be: 4.20 m, 4.00 m or 3.80 m (left swath included) and can changed depending on the quantity of product to be raked in the field so that the user can always obtain windrows with optimal dimensions. It has 4 main Balloons wheels 16×6.50-8 assembled on a tandem truck to have the best fitting to the ground and a fifth frontal one with screw system adjustable height to optimize the working plane, a double omokinetic cardan shaft with clutch and rotor locking device for road transportation; the shaft that links the rake to the tractor has a parallelogram shape. When the rake is lifted, the front wheels of the tandem truck detaches from the ground to make maneuvering easy and prevent tyres side slippage. By request they can be equipped with a lighting unit. TECHNICAL SPECIFICATIONS Minimum transport width:1.79 m arms:11 Tines for each arm:4 Width:4.20 m / 4.00 m / 3.80 m Weight:550 kg ACCESSORIES .Light system
