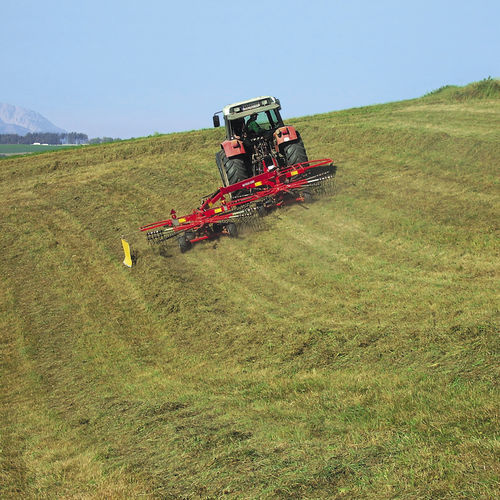

Rotary rake 6500

side deliverysingle-rotor

Hydraulic trailed rotary rake with two rotors. It is trailed both in working and in transport position: the shaft that links the rake to the tractor has a parallelogram shape. Its rotors (3.44 m diameter) are hydraulically moved and turn in the same direction so that, depending from the position of the second one (see pictures below), they allow the formation of one or two lateral left sided windrows. Each rotor can be hydraulically lifted and is equipped with strong zinc-plated arms with a special profile (like a cardan shaft), on which 4 special steel C85 teeth with double slope shape are mounted, that are easily unthreaded for the transport on the street. This rake is equipped with a special articulated joint between the two rotors that allows their independency and that, together with the adjustable tandem trucks on which 8 Super Balloons wheels 18.5×8.50-8 are mounted, permit to have the best fitting to the ground and an high proceeding speed. Working width is hydraulically adjusted and can be changed also while working. By request they can be equipped with a lighting unit. Tractor equipment: 1 SE + 1 DE + 1 electric joint with 7 pins. TECHNICAL SPECIFICATIONS Rotor diameter:3.44 m Minimum transport width:1.68 m arms:22 Tines for each arm:4 Wheels:8 ruote Super Ballons 18.5×8.50-8 su 2 tandem Weight:1150 kg ACCESSORIES .Light system
