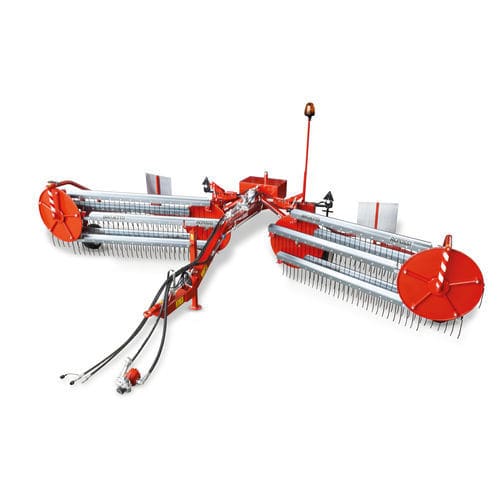

Rotary rake 6000/10C

center delivery

Trailed, hydraulic, double comb side-delivery rake with central swath This rake has 10 reels that are acted from the tractor driver’s seat. It is equipped with an independent hydraulic plant which oil pump, fitted to the tractor’s power take-off, acts the rotation of the reels. The central wheels lifting pistons and the raking groups lifting hydraulic cylinders are acted by the tractor’s hydraulic distributors. It forms a compact central swath. By request they can be equipped with a lighting unit. TECHNICAL SPECIFICATIONS Minimum transport width:2.55 m Transport height:2.77 m Number of reels:10 Tines per reel:13 Wheels:26x12.00-12/16x6.50-8 Weight:940 kg ACCESSORIES .Additional ballast for main wheels .Electric-valves kit to allow single movement of the raking groups from the cabin .Hydraulic taps to allow single movement of the raking groups
