Hose Rylflex Marina

dischargesupplyair distribution

Product name
Rylflex Marina

Construction

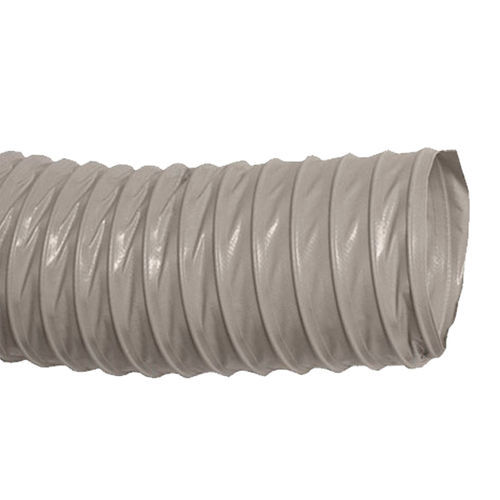

Grey flexible PVC hose reinforced with polyamide fibre; optional fibreglass construction available. Steel spiral reinforcement is positioned between layers to provide structural stability while maintaining flexibility.

Applications / Overview
Very flexible suction hose designed for smoke extraction, marine air conditioning, steam lines and conveyance of hot air up to 100°C. Suitable for vessel ventilation, engine-room extraction and HVAC ducting in maritime environments.

Temperature
Service temperature: -30°C to +100°C (short peaks up to +120°C). Compression ratio: 8:1.

Available items / sizes (table)
Item | Code | Ø (mm)
C403025 | 6058 | 25
C403030 | 6059 | 30
C403040 | 6060 | 40
C403050 | 6061 | 50
C403060 | 6063 | 60
C403070 | 6064 | 70
C403075 | 6065 | 75
C403080 | 6066 | 80
C403090 | 6067 | 90
C403100 | 6068 | 100
C403110 | 6069 | 110
C403120 | 6071 | 120
C403125 | 6072 | 125
C403140 | 6073 | 140
C403150 | 6074 | 150
C403160 | 6075 | 160
C403180 | 6077 | 180
C403200 | 6078 | 200
C403250 | 6081 | 250
C403300 | 6083 | 300
C403350 | 6085 | 350
C403400 | 6086 | 400
C403450 | 6087 | 450
C403500 | 6088 | 500

Characteristics / Technical specifications

• Material: Flexible grey PVC with polyamide fibre reinforcement; optional fibreglass construction for specific applications.
• Reinforcement: Steel spiral located between layers for combined flexibility and structural strength.
• Typical marine uses: Ventilation and smoke extraction on vessels, engine-room and machinery ventilation, HVAC ducting, steam and hot air conveyance within rated temperatures.
• Operating temperature range: -30°C to +100°C (short peaks up to +120°C).
• Compression ratio: 8:1.
• Available diameters: 25 mm to 500 mm (see table for product codes).
