Hose Rylflex Neopreno 1

rubberhot galvanizedspiral

Product

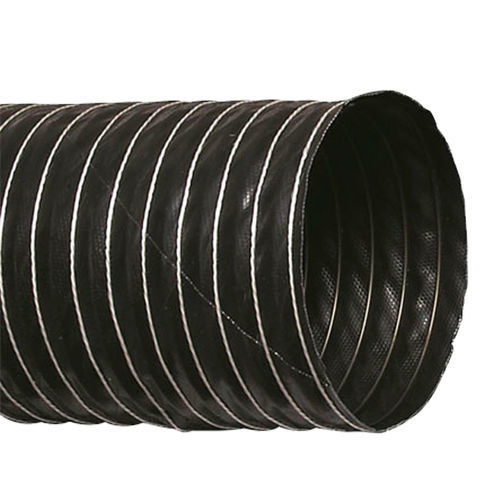

Fibreglass suction hose with neoprene external coating and galvanized steel spiral, model Rylflex Neopreno 1.

Description
Suction hose for fumes, hot air and gases up to 130°C, suitable for automotive, railway and marine applications. Operational temperature range: -40°C to +130°C (short peaks up to 150°C).

Available items
Item | Code | Ø (mm)
C413041 | 6322 | 41
C413050 | 6326 | 51
C413055 | 6327 | 55
C413060 | 6329 | 60
C413065 | 6331 | 65
C413070 | 6332 | 70
C413076 | 6334 | 76
C413080 | 6335 | 80
C413089 | 6337 | 89
C413102 | 6341 | 102
C413114 | 6344 | 114
C413121 | 6347 | 121
C413127 | 6349 | 127
C413140 | 6351 | 140
C413165 | 6355 | 165
C413203 | 6360 | 203
C413229 | 6361 | 229
C413254 | 6363 | 254

Features / Technical specifications

• Construction: Fibreglass hose with neoprene external coating
• Outer coating: Neoprene
• Reinforcement: Galvanized steel spiral
• Typical uses: Suction of fumes, hot air and gases in industrial environments; suitable for automotive, railway and marine sectors
• Temperature range: -40°C to +130°C (short peaks up to 150°C)
• Available diameters (Ø mm): 41, 51, 55, 60, 65, 70, 76, 80, 89, 102, 114, 121, 127, 140, 165, 203, 229, 254
• Reference format: Item — Code — Ø (mm) as listed above
