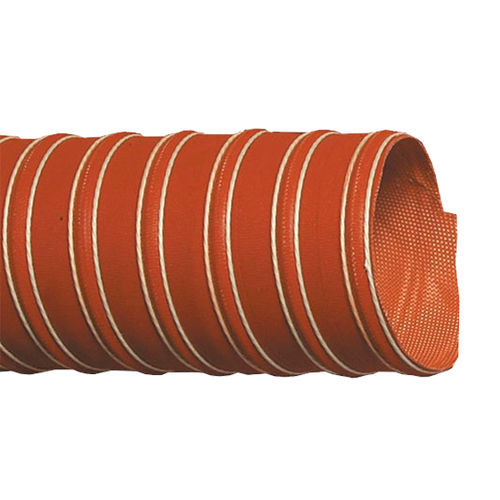

Hose Rylflex 2

dischargesiliconehot galvanized

Description
Flexible suction hose for extraction of smoke, hot air and gases up to 250°C, suitable for automotive, railway and marine industry installations.
Optional: special blue construction for installation in railway vehicles complying with fire standards DIN 5510-2, ISO 5659-2 and ISO 19702.
Temperature range: -40°C to +250°C (short-term peaks up to 280°C).

Article table
Article | Code | Ø (mm)
C416025 | 6472 | 25
C416032 | 6475 | 32
C416038 | 6476 | 38
C416041 | 6478 | 41
C416044 | 6479 | 44
C416051 | 6482 | 51
C416055 | – | 55
C416060 | 6485 | 60
C416063 | 6486 | 63
C416065 | 6487 | 65
C416070 | 6488 | 70
C416075 | 6489 | 75
C416076 | 6490 | 76
C416080 | 6491 | 80
C416089 | 6493 | 89
C416102 | 6497 | 102
C416114 | 6500 | 114
C416120 | 6503 | 120
C416127 | 6505 | 127
C416140 | 6507 | 140
C416152 | 6509 | 152
C416160 | 6510 | 160
C416165 | 6511 | 165
C416180 | 6514 | 180
C416203 | 6516 | 203
C416254 | 6519 | 254
C416305 | 6521 | 305

Characteristics / technical specifications

• Construction: double-layer fiberglass fabric coated with silicone.
• Spiral: integrated galvanized steel spiral for reinforcement and shape retention.
• Applications: extraction of smoke, hot air and gases; suitable for automotive, railway and marine industries.
• Service temperature: -40°C to +250°C; short-term resistance up to 280°C.
• Optional: blue version for railway vehicle installation complying with DIN 5510-2, ISO 5659-2 and ISO 19702.
• Available diameters: from 25 mm to 305 mm (see article table for complete list and codes).
• Inner and outer surface: silicone coating on fiberglass fabric, providing thermal and chemical resistance appropriate to the application.
