Hose Rylflex Air

air distributiondischargepolyurethane

Product overview
Very flexible suction hose for air, dust and oil fumes. Suitable for industrial applications, wood chips and abrasive material. Designed for extraction and conveying where flexibility and wear resistance are required.

Material and construction

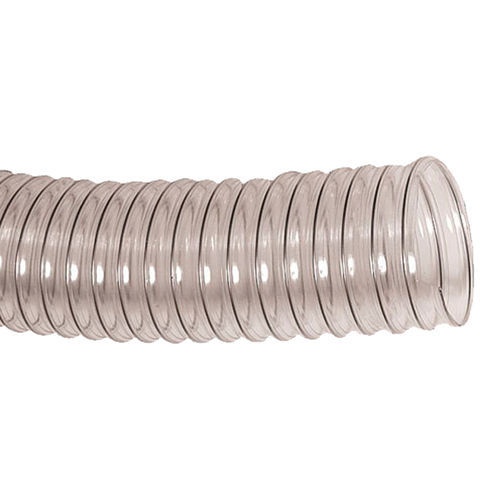

Transparent polyurethane hose with copper-plated steel spiral, smooth bore. Provides good visibility of conveyed material and reinforced structure for vacuum applications.

Options
Optional: Antistatic and food-use versions available on request (price increase approx. 15% over RRP).

Physical properties
Thickness: 0.45 mm.
Temperature range: -40°C to +90°C. / Compression ratio: 8:1.

Available items (table)
Item | Code | Ø (mm)
C406025 | 6120 | 25
C406030 | 6121 | 30
C406035 | 6122 | 35
C406040 | 6123 | 40
C406045 | – | 45
C406050 | 6124 | 50
C406060 | 6125 | 60
C406070 | 6126 | 70
C406075 | 6127 | 75
C406080 | 6128 | 80
C406090 | 6129 | 90
C406100 | 6130 | 100
C406110 | 6131 | 110
C406120 | 6132 | 120
C406125 | 6133 | 125
C406130 | 6134 | 130
C406140 | 6135 | 140
C406150 | 6136 | 150
C406160 | 6137 | 160
C406170 | 6138 | 170
C406180 | 6140 | 180
C406200 | 6141 | 200
C406225 | 6143 | 215
C406250 | 6144 | 250
C406275 | 6145 | 275
C406300 | 6146 | 300
C406350 | 6148 | 350
C406400 | 6150 | 400
C406450 | 6151 | 450
C406500 | 6152 | 500

Technical specifications

• Type: Transparent polyurethane suction hose with copper-plated steel spiral
• Primary use: Suction and extraction of air, dust and oil fumes; suitable for industrial applications, wood chips and abrasive materials
• Wall thickness: 0.45 mm
• Temperature range: -40°C to +90°C
• Compression ratio: 8:1
• Options: Antistatic and food-use versions available on request (approx. +15% on RRP)
• Available diameters (mm): 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100, 110, 120, 125, 130, 140, 150, 160, 170, 180, 200, 215, 250, 275, 300, 350, 400, 450, 500
• Ordering codes: see table above for item codes (e.g. C406025 → 25 mm, C406500 → 500 mm)
