Hose Rylflex Cyclone L

air distributionpolyurethanespiral

Product type

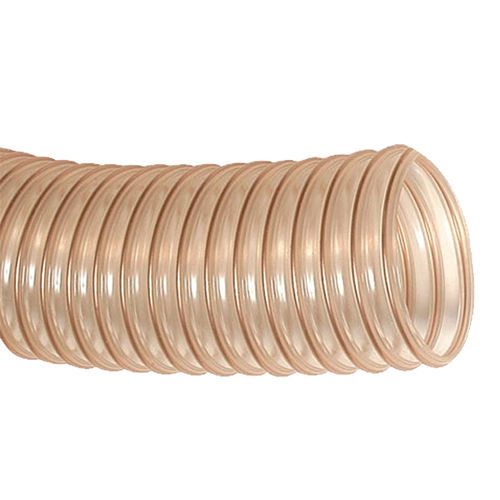

Transparent polyurethane suction hose with external copper-plated steel spiral

Overview
Flexible suction hose for air, dust and oil fumes. Suitable for industrial extraction systems, pneumatic conveying, wood chip extraction and abrasive materials.

Options

• Antistatic version available on request
• Food-grade version available on request (subject to a 15% surcharge over RRP)

Physical properties

• Wall thickness: 0.60 mm
• Temperature range: -40°C to +90°C
• Compression ratio: 3:1

Available items / dimensions
Item | Code | Ø (mm)
C407040 | 6181L | 40
C407050 | 6182L | 50
C407060 | 6183L | 60
C407070 | 6184L | 70
C407075 | 6185L | 75
C407080 | 6186L | 80
C407090 | 6187L | 90
C407100 | 6188L | 100
C407110 | 6189L | 110
C407120 | 6190L | 120
C407125 | 6191L | 125
C407130 | 6192L | 130
C407140 | 6193L | 140
C407150 | 6194L | 150
C407160 | 6195L | 160
C407180 | 6196L | 180
C407200 | 6197L | 200
C407225 | 6200L | 225
C407250 | 6201L | 250
C407275 | 6202L | 275
C407300 | 6203L | 300

Characteristics / technical specifications

• Material: Transparent polyurethane
• Spiral: External copper-plated steel spiral
• Function: Suction hose for air, dust, oil fumes, wood chips and abrasive materials
• Available diameters: 40 mm to 300 mm (see items list)
• Wall thickness: 0.60 mm
• Temperature range: -40°C to +90°C
• Compression ratio: 3:1
• Optional features: Antistatic version; food-grade version (available on request, price increase applies)
