Hose Rylflex Super

polyurethanespiralsuction

Product

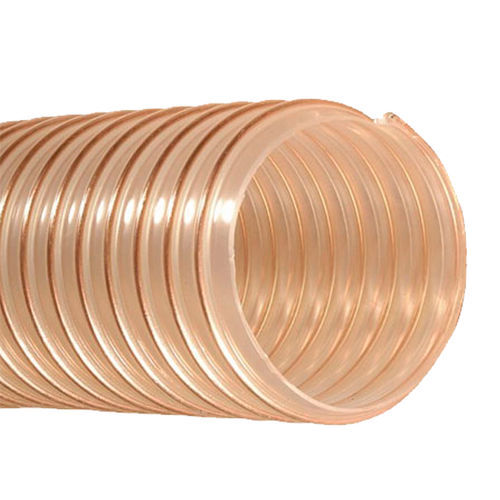

Transparent polyurethane suction hose reinforced with a copper-plated steel spiral. Wall thickness 1.40 mm. Designed for industrial suction of air, dust and oil fumes.

Overview
Suction hose suitable for industrial applications including wood chips and abrasive materials. Smooth inner surface prevents sediment formation and facilitates material flow.

Optional versions

• Special productions available resistant to hydrolysis and microbes.
• Non-toxic and food-grade versions according to FDA and EU regulations (available by request with an approximate 15% increase over RRP).
• AS version: Antistatic (R ≤ 10^8 Ohms according to TRBS 2153).
• EL version: Electrically conductive (R ≤ 10^4 Ohms according to TRBS 2153).

Operating range
Wall thickness: 1.40 mm.
Temperature range: -40°C to +100°C.

Available items (table)
Item | Code | Ø (mm)
C411030 | 6236 | 30
C411032 | 6237 | 32
C411040 | 6240 | 40
C411045 | 6241 | 45
C411050 | 6242 | 50
C411055 | 6243 | 55
C411060 | 6244 | 60
C411070 | 6245 | 70
C411075 | 6246 | 75
C411080 | 6247 | 80
C411090 | 6248 | 90
C411100 | 6249 | 100
C411110 | 6250 | 110
C411120 | 6252 | 120
C411125 | 6253 | 125
C411130 | 6254 | 130
C411140 | 6255 | 140
C411150 | 6256 | 150
C411160 | 6257 | 160
C411180 | 6259 | 180
C411200 | 6260 | 200
C411225 | 6263 | 225
C411250 | 6264 | 250
C411275 | 6265 | 275
C411300 | 6266 | 300

Technical characteristics / specifications

• Material: Transparent polyurethane (PU).
• Reinforcement: Copper-plated steel spiral.
• Inner surface: Smooth to minimize sediment formation.
• Wall thickness: 1.40 mm.
• Temperature range: -40°C to +100°C.
• Applications: Suction of air, dust and oil fumes; industrial use including wood chips and abrasive materials.
• Optional treatments: Hydrolysis and microbe resistance; non-toxic and food-grade (FDA & EU) on request.
• Antistatic (AS) version: R ≤ 10^8 Ohms according to TRBS 2153.
• Electrically conductive (EL) version: R ≤ 10^4 Ohms according to TRBS 2153.
• Available diameters (Ø mm): 30, 32, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 130, 140, 150, 160, 180, 200, 225, 250, 275, 300.
