Hose Rylflex 1

dischargehot galvanizedsilicone

Overview

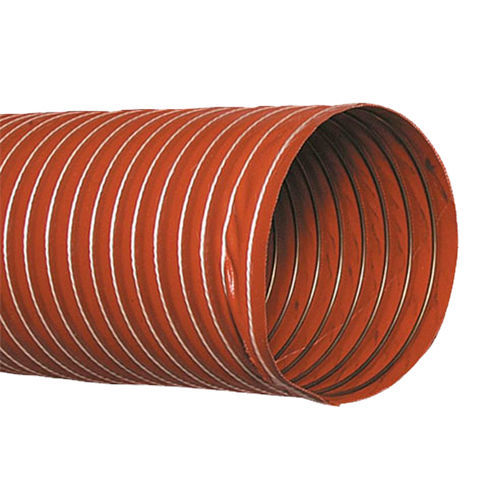

Suction hose constructed from fibreglass fabric with a silicone coating and an external galvanized steel spiral. Designed for extraction of fumes, hot air and gases in industrial environments including automotive, railway and marine sectors.

Applications
Extraction of welding fumes, hot air and process gases; suitable for ducting and flexible connections where high temperature resistance and dimensional stability are required.

Optional version
Special blue production available for installation in railway vehicles compliant with DIN 5510-2, ISO 5659-2 and ISO 19702.

Temperature range
Service temperature from -40°C to +250°C with short peaks up to +280°C.

Table: Available items
Item | Code | Ø (mm)
C415025 | 6420 | 25
C415032 | 6423 | 32
C415038 | 6424 | 38
C415041 | 6426 | 41
C415044 | 6427 | 44
C415051 | 6430 | 51
C415055 | 6431 | 55
C415057 | 6432 | 57
C415060 | 6433 | 60
C415063 | 6434 | 63
C415065 | 6435 | 65
C415070 | 6436 | 70
C415076 | 6438 | 76
C415080 | 6439 | 80
C415083 | 6440 | 83
C415089 | 6441 | 89
C415102 | 6445 | 102
C415114 | 6448 | 114
C415120 | 6450 | 120
C415127 | 6453 | 127
C415140 | 6455 | 140
C415152 | 6457 | 152
C415160 | 6458 | 160
C415165 | 6459 | 165
C415180 | 6462 | 180
C415203 | 6464 | 203
C415229 | 6465 | 229
C415254 | 6467 | 254
C415305 | 6469 | 305

Technical specifications

• Construction: fibreglass fabric hose with silicone coating and external galvanized steel spiral.
• Function: suction/extraction hose for fumes, hot air and gases.
• Industries: automotive, railway and marine.
• Optional: blue version for railway vehicle installation compliant with DIN 5510-2, ISO 5659-2 and ISO 19702.
• Operating temperature: -40°C to +250°C (short peaks up to +280°C).
• Available diameters: see table (25 mm to 305 mm). Items supplied by reference code.
