Hose Rylflex Tornado

polyurethanehot galvanizedPVC

Overview

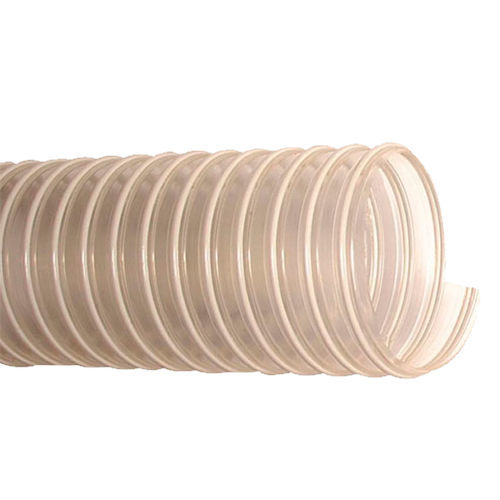

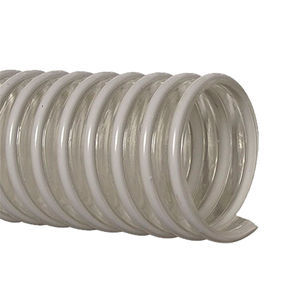

Suction hose for air, dust and oil fumes. Suitable for industrial applications including wood chips and abrasive materials. Smooth inner surface reduces sediment formation on the walls.

Construction
Transparent polyurethane tube reinforced by a galvanized steel spiral and covered externally with white PVC.

Optional versions

• AE: Hydrolysis and microbe resistant, non‑toxic and food‑grade (FDA and EU regulations).
• AS: Antistatic (R ≤ 10^8 Ω according to TRBS 2153).
• EL: Electrically conductive (R ≤ 10^4 Ω according to TRBS 2153).

Thickness and temperature
Wall thickness: 0.7 mm – 1.3 mm.
Temperature range: -40°C to +100°C.

Available items
Item | Code | Ø (mm)
C410020 | 6204 | 20
C410030 | 6206 | 30
C410040 | 6207 | 40
C410050 | 6208 | 50
C410060 | 6209 | 60
C410070 | 6210 | 70
C410080 | 6212 | 80
C410090 | 6213 | 90
C410100 | 6214 | 100
C410140 | 6219 | 140
C410150 | 6220 | 150
C410160 | 6221 | 160
C410180 | 6223 | 180
C410200 | 6224 | 200
C410225 | 6228 | 225
C410250 | 6227 | 250
C410300 | 6229 | 300
C410325 | 6230 | 325
C410400 | 6233 | 400
C410500 | 6235 | 500

Characteristics / technical specifications

• Product name: Rylflex Tornado.
• Material: Transparent polyurethane inner tube.
• Reinforcement: Galvanized steel spiral.
• External cover: White PVC.
• Inner surface: Smooth to reduce sediment formation.
• Intended use: Suction of air, dust and oil fumes; suitable for industrial use including wood chips and abrasive materials.
• Available diameters: 20 mm to 500 mm (see Available items).
• Wall thickness: 0.7 mm – 1.3 mm.
• Temperature range: -40°C to +100°C.
• Optional versions: AE (food‑grade, hydrolysis and microbe resistant), AS (antistatic), EL (electrically conductive).
• Notes: Spiral reinforcement provides flexibility and collapse resistance for suction applications.
