Hose Rylflex Alfa

dischargeair distributionsupply

Product overview

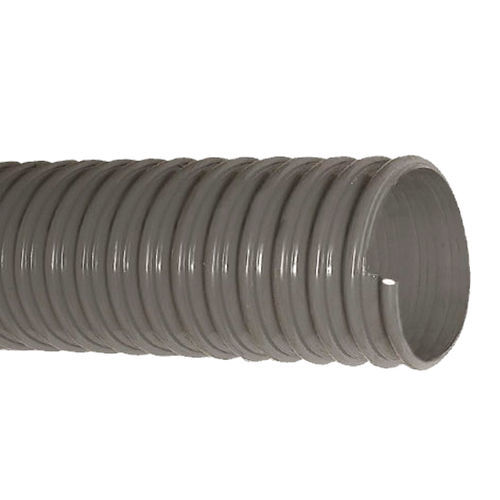

Flexible grey PVC hose with rigid PVC spiral reinforcement, designed for suction and delivery of fumes, dust, seeds, wood chips and industrial ventilation.

• Applications: suction and propulsion of fumes, dust, seeds, chips and industrial ventilation.
• Temperature range: 0°C to +60°C.
• Construction: flexible PVC tube with integrated rigid PVC spiral for collapse resistance.

Available references (table)
Item | Code | Ø (mm) | WP (bar)
C401020 | 6001 | 20X24.5 | 2.0
C401025 | 6002 | 25X30 | 2.0
C401030 | 6003 | 30X34.7 | 1.8
C401032 | 6004 | 32X38 | 1.8
C401035 | 6005 | 35X40.5 | 1.8
C401040 | 6007 | 40X45.5 | 1.8
C401045 | 6008 | 45X51.4 | 1.8
C401050 | 6009 | 50X56.6 | 1.8
C401060 | 6011 | 60X68.2 | 1.5
C401070 | 6012 | 70X78 | 1.5
C401075 | 6013 | 75X84.5 | 1.5
C401080 | 6015 | 80X89 | 1.3
C401090 | 6014 | 90X98 | 1.3
C401100 | 6016 | 100 X112 | 1.3
C401110 | 6017 | 110X122 | 1.0
C401120 | 6018 | 120X131 | 0.8
C401125 | 6019 | 125X138 | 0.8
C401140 | 6020 | 140X153 | 0.5
C401150 | 6021 | 150X163 | 0.5
C401160 | 6022 | 160X170 | 0.5
C401200 | 6024 | 200X216 | 0.3
C401250 | 6025 | 250X263 | 0.2
C401300 | – | 300X318.4 | 0.2

Technical specifications

• Product name: Rylflex Alfa.
• Denomination: Flexible grey PVC hose with rigid PVC spiral.
• Material: Flexible grey PVC tube with rigid PVC spiral reinforcement.
• Applications: Suction and propulsion of fumes, dust, seeds, chips and industrial ventilation.
• Temperature range: 0°C to +60°C.
• Working pressure (WP): Varies by diameter (see table). Values range from 2.0 bar down to 0.2 bar depending on size.
• Available diameter range: from 20X24.5 mm up to 300X318.4 mm (see table for intermediate sizes).
• Product references / item codes: Listed in the table above (e.g. C401020 - 6001, C401025 - 6002, ... C401300 - –).
