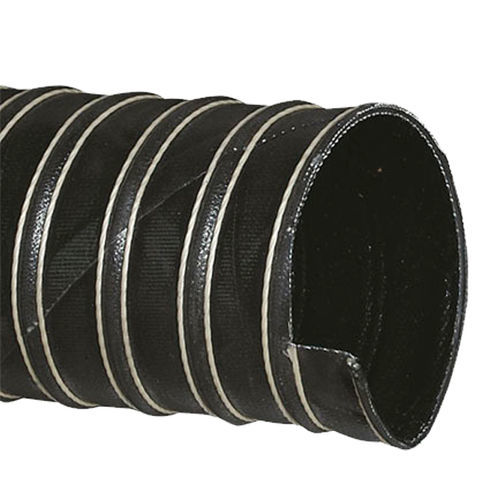

Hose Rylflex Neopreno 2

dischargeair distributionhot galvanized

Product name
Rylflex Neopreno 2

Description
Suction hose for fumes, hot air and gases up to 130°C, designed for use in automotive, railway and naval industries. Suitable for extraction and transport of hot gases where flexibility and temperature resistance are required.

Construction
Double-layer fiberglass hose with neoprene coating and a galvanized steel spiral placed between layers to ensure shape retention and mechanical strength.

Temperature
Service temperature: -40°C to +130°C (short peaks up to 150°C).

Available items
Item | Code | Ø (mm)
C414025 | 6368 | 25
C414032 | 6371 | 32
C414041 | 6374 | 41
C414050 | 6378 | 51
C414055 | 6379 | 55
C414057 | 6380 | 57
C414060 | 6381 | 60
C414063 | 6382 | 63
C414065 | 6383 | 65
C414076 | 6386 | 76
C414080 | 6387 | 80
C414089 | 6389 | 89
C414102 | 6393 | 102
C414120 | 6399 | 121
C414127 | 6401 | 127
C414152 | 6405 | 152
C414160 | 6406 | 160
C414200 | 6412 | 200
C414229 | 6413 | 229

Technical specifications

• Type: Suction hose for fumes, hot air and gases.
• Material / Construction: Double-layer fiberglass with neoprene coating; galvanized steel spiral between layers.
• Temperature range: -40°C to +130°C (short peaks up to 150°C).
• Industries: Automotive, railway and naval.
• Available diameters: 25 mm to 229 mm (see table).
