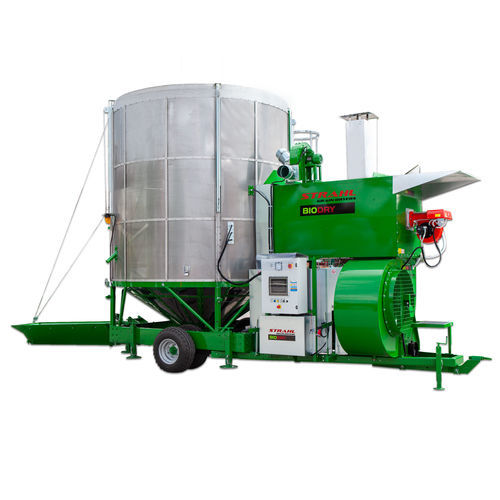

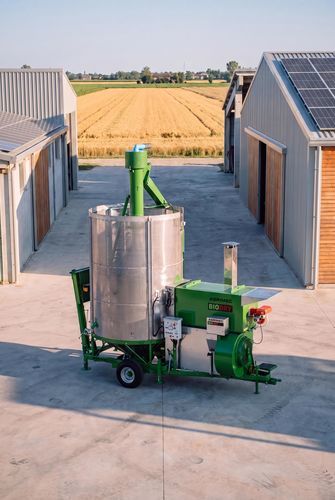

Grain dryer BIODRY ES 400

paddy ricemobileorganic

Overview
BIODRY is Strahl’s series of mobile dryers for cereals, legumes and seeds that require clean, protected drying air. An AISI stainless-steel heat exchanger keeps combustion air separate from drying air to minimise contamination and preserve product organoleptic properties. Indirect combustion with a compact boiler reduces atmospheric emissions and thermal losses, supporting a sustainable, energy-efficient drying process for farms, contractors and quality-sensitive facilities.

Key benefits

• Clean drying air: combustion air is isolated from the drying air stream, suitable for organic supply chains.
• Energy efficiency: large stainless-steel heat exchanger maximises thermal recovery and lowers fuel use at equivalent capacity.
• Uniform drying: continuous internal movement of the product ensures homogeneous moisture reduction and improved storage stability.
• Faster cycles: optimised exchange surface between hot air and product shortens drying times without affecting quality.

Main components

• Loading hopper: receives product and helps separate unwanted elements before drying.
• Loading auger: feeds product into the dryer.
• Central auger: elevates and reintroduces product into the drying zone, enabling continuous circulation.
• Swivel discharge: allows gravity discharge or, on flat surfaces, auger discharge driven by an electric motor.
• Heat exchanger: stainless-steel unit that completely separates combustion air from drying air.
• Fan: draws external air through the preheated furnace and into the drying bell to reduce moisture.
• Ejection cleaner: expulsion-type cleaner for impurity removal.
• Electrical panel (automatic/manual): centralised control of drying processes and machine functions.
• Drive options (PTO / electric / mixed): selectable according to operational needs.

Available models and capacities
Width 2.25 m
Modello | Capacity m³ | PTO power HP (kW) | Electric power kW
ES 400 | 8 | 30 (22) | 17
ES 500 | 10 | 35 (26) | 17.5

Width 2.55 m
ES 600 | 11.5 | 40 (30) | 21
ES 900 | 15 | 45 (34) | 25
ES 1000 | 17 | 50 (37) | 27
ES 1150 | 19 | 55 (41) | 31

Width 3.2 m
ES 1350 | 21 | 65 (49) | 37
ES 1550 | 28.5 | 70 (52) | 39
ES 1750 | 32 | 75 (56) | 42

Width 4 m
ES 2250 | 44 | 100 (75) | 54
ES 2550 | 52 | 100 (75) | 55
ES 2650 | 58 | 110 (82) | 57
ES 3150 | 64 | 150 (112) | 85
ES 3550 | 75 | 150 (112) | 85
ES 3750 | 100 | 150 (112) | 85

Technical specifications

• Type: mobile dryer with indirect combustion (BIODRY series).
• Heat exchanger: stainless-steel separation of combustion and drying air.
• Combustion: indirect, compact boiler to limit emissions and thermal loss.
• Energy recovery: large exchanger for maximised thermal recovery and reduced fuel consumption.
• Drying uniformity: continuous product circulation for homogeneous drying.
• Discharge: gravity or auger (electric motor) via swivel discharge.
• Loading and cleaning: loading hopper, loading auger and ejection cleaner included.
• Airflow: fan draws air through preheated furnace into drying bell.
• Control: electrical panel with automatic and manual modes.
• Drive: PTO (cardan), electric or mixed options available.
• Range: capacities from 8 m³ (ES 400) to 100 m³ (ES 3750) with corresponding PTO and electric power values.
