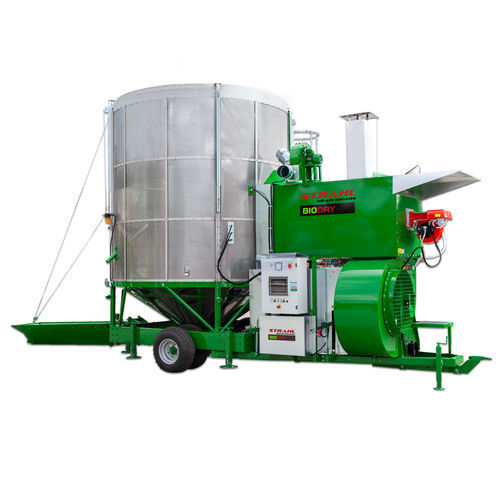

Grain dryer BIODRY ES 500

cerealseedpaddy rice

Product overview

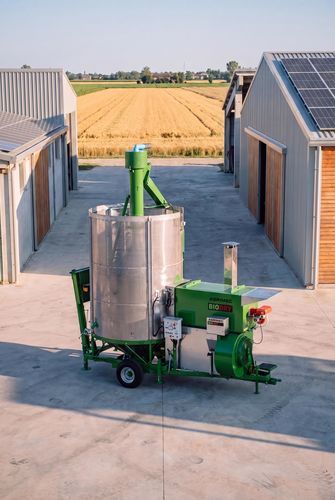

BIODRY is Strahl’s range of mobile grain dryers designed for cereals, legumes and seeds that require clean, protected drying air. The dryers use indirect-combustion heating: an integrated stainless-steel heat exchanger fully separates combustion air from drying air to minimise contamination risk and preserve the product’s organoleptic properties. A compact, efficient boiler reduces thermal losses and helps contain atmospheric emissions, supporting a more sustainable and cost-effective drying process for farms, contractors and facilities focused on quality and traceability.

Key benefits

• Clean drying air – Combustion air is kept separate from the drying air that contacts the product, making BIODRY suitable for organic chains and high-traceability processes.
• Energy recovery – Large stainless-steel heat exchanger maximises thermal recovery, lowering fuel consumption for equivalent capacity.
• Product homogeneity – Continuous internal movement of the product promotes uniform drying and consistent moisture levels.
• Shorter drying cycles – Large exchange surface between hot air and grain enables fast drying times without compromising product quality.

Main components

• Loading hopper – Feeds product into the dryer and allows separation of foreign materials.
• Loading auger – Conveys product into the drying chamber.
• Central auger – Transports product upward and reintroduces it into the drying area; assists discharge.
• Swivel discharge – Allows gravity discharge or, on flat ground, auger discharge with electric motor.
• Heat exchanger – Stainless-steel unit keeping combustion air and drying air completely separate.
• Fan – Draws ambient air, channels it through the preheated furnace and into the drying bell to reduce moisture.
• Ejection cleaner – Cleans and removes impurities from the product stream.
• Electrical panel (automatic/manual) – Centralised control for all dryer operations.
• Drive (PTO and/or electric) – Available PTO (gimbal), electric or mixed drives to match operational needs.

Models

Width 2.25 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
ES 400 | 8 | 30 (22) | 17
ES 500 | 10 | 35 (26) | 17.5

Width 2.55 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
ES 600 | 11.5 | 40 (30) | 21
ES 900 | 15 | 45 (34) | 25
ES 1000 | 17 | 50 (37) | 27
ES 1150 | 19 | 55 (41) | 31

Width 3.2 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
ES 1350 | 21 | 65 (49) | 37
ES 1550 | 28.5 | 70 (52) | 39
ES 1750 | 32 | 75 (56) | 42

Width 4 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
ES 2250 | 44 | 100 (75) | 54
ES 2550 | 52 | 100 (75) | 55
ES 2650 | 58 | 110 (82) | 57
ES 3150 | 64 | 150 (112) | 85
ES 3550 | 75 | 150 (112) | 85
ES 3750 | 100 | 150 (112) | 85

Technical specifications

• Series: BIODRY — mobile grain dryers for cereals, legumes and seeds.
• Brand: Strahl.
• Heat exchanger: stainless-steel heat exchanger separating combustion air and drying air to avoid contamination.
• Boiler: compact, efficient boiler designed to contain emissions and reduce thermal loss.
• Energy recovery: large exchange surface to maximise thermal recovery and reduce fuel usage.
• Drying principle: indirect-combustion drying to preserve organoleptic qualities.
• Product handling: continuous internal movement for uniform drying and product homogeneity.
• Discharge: gravity or auger discharge (swivel discharge available).
• Cleaning: ejection cleaner for impurity removal.
• Controls: central electrical panel with automatic/manual operation.
• Drives: PTO (gimbal), electric or mixed configurations available.
• Available models cover capacities from 8 m³ to 100 m³ with corresponding PTO and electric power ratings (see Models block).
