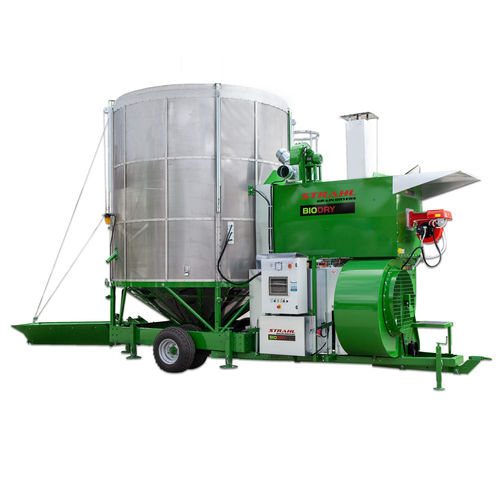

Cereal dryer BIO DRY ES 1350

seedpaddy ricemobile

Product overview
BIODRY is Strahl’s series of mobile dryers for cereals, legumes and seeds that require clean, protected drying air. The system uses indirect combustion with a stainless‑steel heat exchanger that keeps combustion air separate from drying air, reducing contamination risk and preserving organoleptic properties. The compact, efficient boiler limits emissions and thermal losses to support a more sustainable drying process for farms, contractors and processing facilities focused on quality and traceability.

Main features

• Clean drying air: Combustion air and drying air are fully separated so the drying air never contacts the product, meeting organic production and hygiene requirements.
• Energy efficiency: Oversized stainless‑steel heat exchanger maximises thermal recovery and reduces fuel consumption at equivalent capacity.
• Product homogeneity: Continuous internal product movement ensures uniform drying for improved product quality and shelf life.
• Reduced drying times: Large exchange surface between hot air and product enables faster drying without compromising quality.

Components (visualizer)

• Loading hopper: Facilitates product loading and preliminary separation of foreign materials.
• Central auger: Transports product upward and reintroduces it into the drying zone, aiding discharge.
• Swivel discharge: Allows gravity discharge or, on flat surfaces, auger discharge with electric motor.
• Heat exchanger: Fully separates combustion air flow from the drying air flow that contacts the product.
• Fan: Draws ambient air, channels it through the preheated furnace and sends it into the drying bell to reduce moisture.
• Expulsion cleaner: Removes impurities via a drop‑expulsion mechanism.
• Electrical panel (automatic/manual): Centralised control for all dryer functions and process management.
• Drive options (PTO/electric/mixed): Available with PTO (cardan), electric or mixed drives depending on operational needs.
• Temperature sensors: Monitor product temperature throughout the drying cycle.

Models
Width 2.25 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
ES 400 | 8 | 30 (22) | 17
ES 500 | 10 | 35 (26) | 17.5

Width 2.55 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
ES 600 | 11.5 | 40 (30) | 21
ES 900 | 15 | 45 (34) | 25
ES 1000 | 17 | 50 (37) | 27
ES 1150 | 19 | 55 (41) | 31

Width 3.2 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
ES 1350 | 21 | 65 (49) | 37
ES 1550 | 28.5 | 70 (52) | 39
ES 1750 | 32 | 75 (56) | 42

Width 4 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW
ES 2250 | 44 | 100 (75) | 54
ES 2550 | 52 | 100 (75) | 55
ES 2650 | 58 | 110 (82) | 57
ES 3150 | 64 | 150 (112) | 85
ES 3550 | 75 | 150 (112) | 85
ES 3750 | 100 | 150 (112) | 85

Technical specifications

• Indirect combustion drying with stainless‑steel heat exchanger to separate combustion and drying air and avoid contamination.
• Compact, efficient boiler designed to limit emissions and reduce thermal energy losses.
• Available drives: PTO (cardan), electric or mixed configurations to match farm or plant infrastructure.
• Electrical control panel in automatic or manual versions for centralised management.
• Integrated temperature sensors for accurate monitoring of product temperature during drying.
• Wide model range covering capacities from 8 m³ to 100 m³ to suit different farm sizes and contractor needs.
• Designed specifically for cereals, legumes and seeds; suitable for organic supply chains and operations requiring traceability.
