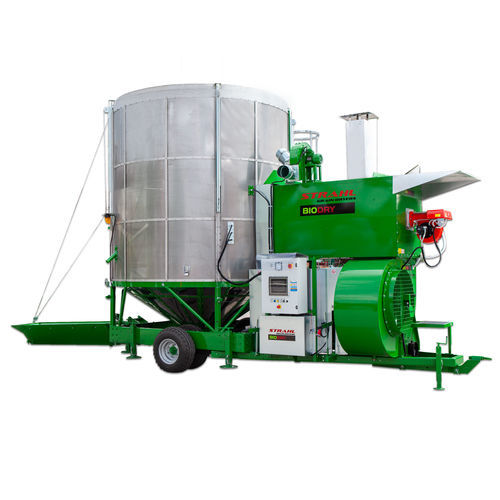

Grain dryer BIODRY ES 600

cerealseedpaddy rice

Product overview
BIODRY is Strahl’s series of mobile dryers designed for cereals, legumes and seeds requiring clean, protected drying air, also ideal for organic supply chains and operations sensitive to quality and traceability. Thanks to a stainless steel heat exchanger, combustion air is separated from drying air, reducing contamination risk and preserving the product’s organoleptic characteristics. The compact yet efficient boiler helps contain atmospheric emissions and reduce thermal energy losses, supporting a more sustainable and cost-effective drying process for farms, contractors and facilities focused on quality and process control.

Key benefits

• Perfectly clean air: combustion air remains separate from drying air and never comes into contact with the product, ensuring clean drying suited to organic supply chain requirements.
• Energy efficiency: large heat exchanger maximises thermal energy recovery and reduces fuel consumption at the same capacity.
• Product homogeneity: continuous movement of the product inside the dryer promotes uniform drying, improving quality and shelf life.
• Reduced times: large exchange surface between hot air and product allows fast drying times without compromising quality.

Components (visualizer)

• Loading Hopper — The loading hopper allows loading of the product to be dried and the separation of unwanted elements and materials.
• Central Auger — The central auger is designed to transport the product upwards, reintroducing it into the drying area and subsequently facilitating product discharge.
• Swivel Discharge — Dried grain can be discharged simply by gravity or, without slope, via an auger with electric motor.
• Heat Exchanger — The heat exchanger keeps the combustion air flow and the drying air flow that comes into contact with the grain completely separate.
• Fan — The fan draws external air, channels it through the pre-heated furnace and sends it into the bell to reduce grain moisture.
• Expulsion Cleaner — The expulsion cleaner is a device that removes impurities using a drop expulsion mechanism.
• Electrical Panel (automatic/manual) — The electrical panel allows full centralized management of all dryer operational processes.
• Drive (PTO and/or electric) — Strahl mobile dryers are available with PTO (cardan), electric or mixed drive, depending on operational needs.
• Temperature Sensors — Temperature sensors measure and monitor product temperature during drying processes.

Available models and technical tables
Group: Larghezza 2.25 m
Modello | Capacità m³ | Potenza Cardano HP (kW) | Potenza Elettrica kW
ES 400 | 8 | 30 (22) | 17
ES 500 | 10 | 35 (26) | 17.5

Group: Larghezza 2.55 m
Modello | Capacità m³ | Potenza Cardano HP (kW) | Potenza Elettrica kW
ES 600 | 11.5 | 40 (30) | 21
ES 900 | 15 | 45 (34) | 25
ES 1000 | 17 | 50 (37) | 27
ES 1150 | 19 | 55 (41) | 31

Group: Larghezza 3.2 m
Modello | Capacità m³ | Potenza Cardano HP (kW) | Potenza Elettrica kW
ES 1350 | 21 | 65 (49) | 37
ES 1550 | 28.5 | 70 (52) | 39
ES 1750 | 32 | 75 (56) | 42

Group: Larghezza 4 m
Modello | Capacità m³ | Potenza Cardano HP (kW) | Potenza Elettrica kW
ES 2250 | 44 | 100 (75) | 54
ES 2550 | 52 | 100 (75) | 55
ES 2650 | 58 | 110 (82) | 57
ES 3150 | 64 | 150 (112) | 85
ES 3550 | 75 | 150 (112) | 85
ES 3750 | 100 | 150 (112) | 85

Caractéristiques / spécifications techniques

• Application: cereals, legumes and seeds; suitable for organic supply chains and operations requiring traceability and protected drying air.
• Heat exchanger: stainless steel heat exchanger separates combustion air from drying air to avoid contamination and preserve organoleptic qualities.
• Boiler: compact, efficient boiler designed to contain emissions and reduce thermal energy losses.
• Energy recovery: large heat exchanger for maximised thermal recovery and reduced fuel consumption.
• Drying uniformity: continuous internal product movement for homogeneous drying and improved shelf life.
• Discharge options: gravity discharge or auger discharge with electric motor.
• Drive options: PTO (cardan), electric or mixed drive depending on operational needs.
• Electrical control: centralized electrical panel available in automatic or manual versions for full process management.
• Monitoring: temperature sensors for measuring and monitoring product temperature during drying.
• Model range: multiple BIODRY ES models covering capacities from 8 m³ (ES 400) up to 100 m³ (ES 3750) with corresponding PTO and electric power specifications (see tables above).
