Cereal dryer BIODRY

grainseedmobile

Overview

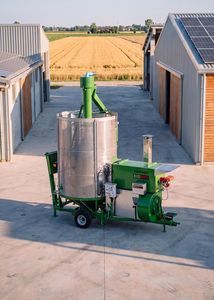

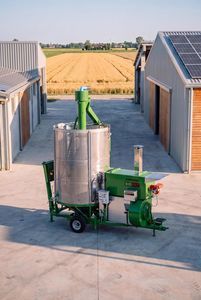

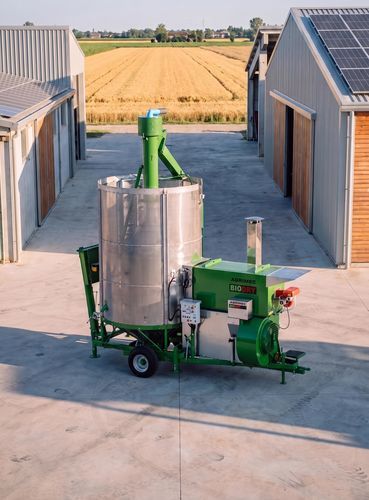

BIODRY is Strahl's series of mobile dryers for cereals, legumes and seeds that require clean, protected drying air. An integrated stainless-steel heat exchanger separates combustion air from drying air to minimize contamination risk and preserve organoleptic qualities. The compact, efficient boiler limits emissions and reduces thermal losses to support more sustainable, controllable drying for farms, contractors and quality-focused facilities.

Key features

• Indirect-combustion drying: combustion air is completely separated from drying air to avoid contact with the product.
• Stainless-steel heat exchanger: prevents contamination of the drying airflow.
• Compact efficient boiler: reduced atmospheric emissions and minimized thermal losses.
• Energy recovery: large heat-exchanger surface for thermal recovery and reduced fuel consumption at comparable capacity.
• Product homogeneity: continuous internal movement ensures uniform drying and improved storage life.
• Reduced drying times: design maximizes exchange surface between hot air and product to shorten drying without quality loss.
• Drive options: available with PTO (cardan), electric or mixed drive to match operational needs.

Components

• Loading hopper: enables product loading and separation of unwanted material.
• Central auger: conveys product upward, recirculating it into the drying zone and easing discharge.
• Swivel discharge: allows gravity discharge or, on flat installations, auger discharge with electric motor.
• Heat exchanger: maintains complete separation between combustion and drying airflows.
• Fan: draws ambient air through the preheated furnace and into the drying bell to reduce grain moisture.
• Expulsion cleaner: removes impurities using a drop-expulsion mechanism.
• Electrical panel (automatic/manual): centralized management of dryer processes and functions.
• Drive (PTO and/or electric): flexible mobility and power configurations.
• Temperature sensors: monitor product temperature throughout drying cycles.

Models and technical data
Width 2.25 m
Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
ES 400 | 8 | 30 (22) | 17
ES 500 | 10 | 35 (26) | 17.5

Width 2.55 m
Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
ES 600 | 11.5 | 40 (30) | 21
ES 900 | 15 | 45 (34) | 25
ES 1000 | 17 | 50 (37) | 27
ES 1150 | 19 | 55 (41) | 31

Width 3.2 m
Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
ES 1350 | 21 | 65 (49) | 37
ES 1550 | 28.5 | 70 (52) | 39
ES 1750 | 32 | 75 (56) | 42

Width 4 m
Model | Capacity (m³) | PTO Power HP (kW) | Electric Power (kW)
ES 2250 | 44 | 100 (75) | 54
ES 2550 | 52 | 100 (75) | 55
ES 2650 | 58 | 110 (82) | 57
ES 3150 | 64 | 150 (112) | 85
ES 3550 | 75 | 150 (112) | 85
ES 3750 | 100 | 150 (112) | 85

Technical specifications

• Brand: Strahl
• Denomination: BIODRY Series
• Drying method: indirect combustion with stainless-steel heat exchanger separating combustion and drying air
• Applications: cereals, legumes, seeds; suitable for organic chains and operations requiring traceability and clean drying air
• Boiler: compact, efficient to contain emissions and reduce thermal losses
• Drive: PTO (cardan), electric or mixed options
• Control: electrical panel available in automatic or manual versions for centralized management
• Sensors: temperature sensors for product monitoring
• Model capacity range: from 8 m³ up to 100 m³
• PTO power range: approximately 30 HP (22 kW) up to 150 HP (112 kW) depending on model
• Electric power range: from 17 kW up to 85 kW depending on model
• Included components: loading hopper, central auger, swivel discharge, heat exchanger, fan, expulsion cleaner, electrical panel, drives, temperature sensors
