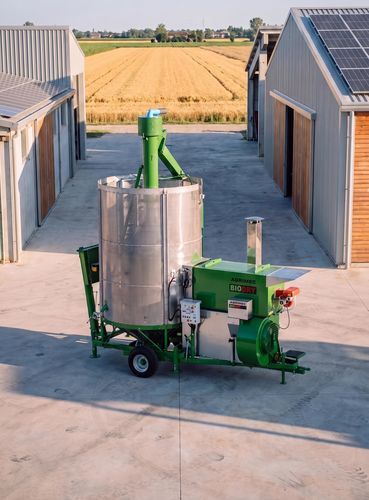

Grain dryer BIO DRY ES 900

cerealseedpaddy rice

Product overview
BIODRY is Strahl's series of mobile dryers for cereals, legumes and seeds that require clean, protected drying air. The system is suitable for organic supply chains and operations prioritising quality and traceability. A stainless‑steel heat exchanger keeps combustion air separate from the drying air that contacts the product, minimising contamination risk and preserving organoleptic properties. The compact, efficient boiler reduces atmospheric emissions and thermal losses, supporting a more sustainable and cost‑effective drying process for farms, contractors and processing facilities.

Key benefits

• Clean drying air — combustion air is isolated from the drying air that contacts the product, meeting requirements for organic production.
• Energy recovery — large stainless‑steel heat exchanger maximises thermal recovery and reduces fuel consumption for a given capacity.
• Product homogeneity — continuous internal movement ensures uniform drying, improving quality and shelf life.
• Reduced drying time — high exchange surface enables fast drying cycles without compromising grain quality.

Main components (visualizer)

• Loading hopper — allows loading of product and separation of unwanted elements and foreign materials.
• Central auger — conveys product upwards, reintroducing it into the drying zone and facilitating discharge.
• Swivel discharge — dried material can be gravity‑discharged or, where no slope is available, via an auger with electric motor.
• Heat exchanger — maintains complete separation between combustion air and drying air in contact with the product.
• Fan — draws external air through the preheated furnace and distributes it into the drying bell to reduce moisture.
• Expulsion cleaner — removes impurities using a drop‑expulsion mechanism.
• Electrical panel (automatic/manual) — centralized management of all dryer operational processes.
• Drive (PTO and/or electric) — available with PTO (cardan), electric or mixed drive depending on operational needs.
• Temperature sensors — measure and monitor product temperature during drying.

Models and technical tables
Width 2.25 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW | Drawings
ES 400 | 8 | 30 (22) | 17 | drawing available
ES 500 | 10 | 35 (26) | 17.5 | drawing available

Width 2.55 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW | Drawings
ES 600 | 11.5 | 40 (30) | 21 | drawing available
ES 900 | 15 | 45 (34) | 25 | drawing available
ES 1000 | 17 | 50 (37) | 27 | drawing available
ES 1150 | 19 | 55 (41) | 31 | drawing available

Width 3.2 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW | Drawings
ES 1350 | 21 | 65 (49) | 37 | drawing available
ES 1550 | 28.5 | 70 (52) | 39 | drawing available
ES 1750 | 32 | 75 (56) | 42 | drawing available

Width 4 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW | Drawings
ES 2250 | 44 | 100 (75) | 54 | drawing available
ES 2550 | 52 | 100 (75) | 55 | drawing available
ES 2650 | 58 | 110 (82) | 57 | drawing available
ES 3150 | 64 | 150 (112) | 85 | drawing available
ES 3550 | 75 | 150 (112) | 85 | drawing available
ES 3750 | 100 | 150 (112) | 85 | drawing available

Technical specifications

• Applications: cereals, legumes and seeds; suitable for organic production chains requiring clean drying air.
• Drying method: indirect combustion drying with stainless‑steel heat exchanger separating combustion and drying air.
• Boiler: compact, designed to contain emissions and reduce thermal energy losses.
• Energy recovery: large heat exchanger for maximised thermal recovery and reduced fuel consumption.
• Product handling: continuous internal movement, central auger, loading hopper, swivel discharge; gravity or auger discharge options.
• Cleaning: expulsion cleaner for impurity removal.
• Controls: centralized electrical panel (automatic/manual) for full operational management.
• Drive options: PTO (cardan), electric or mixed drive.
• Instrumentation: temperature sensors to monitor product temperature during drying.
• Range: models ES 400 to ES 3750, capacities from 8 m³ to 100 m³ with matching PTO/electric power ratings.
