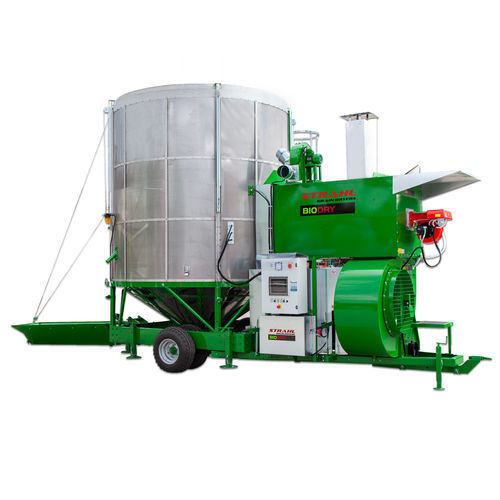

Corn dryer BIO DRY ES 3550

sunflowercolzafor soy

Overview

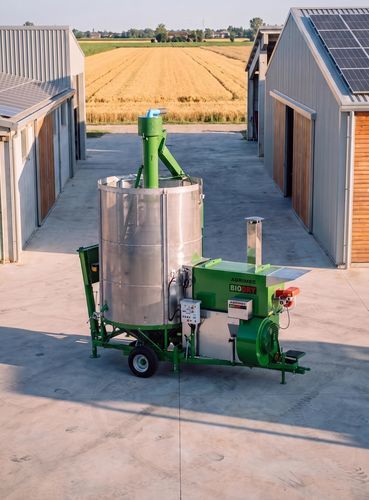

BIODRY is Strahl's series of mobile dryers for cereals, legumes and seeds that require clean, protected drying air. A stainless-steel heat exchanger keeps combustion air separate from drying air to reduce contamination risk and preserve organoleptic properties. The compact boiler reduces atmospheric emissions and thermal losses, supporting a more sustainable drying process for farms, contractors and facilities focused on quality and traceability.

Key benefits

• Clean drying air: Combustion air is kept separate from drying air and never contacts the product, meeting organic‑chain requirements.
• Energy recovery: Large stainless-steel heat exchanger maximizes thermal recovery and lowers fuel consumption for a given capacity.
• Uniform product quality: Continuous product circulation inside the dryer promotes homogeneous drying and improved shelf life.
• Shorter drying times: Large heat-exchange surface between hot air and product enables fast drying without compromising quality.

Components and functions

• Loading hopper: For product intake and preliminary separation of foreign elements.
• Central auger: Transports product upward, reintroducing it into the drying zone and aiding discharge.
• Swivel discharge: Allows gravity discharge or, on flat sites, discharge via an auger with electric motor.
• Heat exchanger: Fully separates combustion air flow from drying air flow.
• Fan: Draws external air through the preheated furnace and sends it into the drying bell to reduce moisture.
• Expulsion cleaner: Removes impurities using a drop-expulsion mechanism.
• Electrical panel (automatic/manual): Centralized control of dryer operational processes.
• Drive options (PTO and/or electric): Available PTO (cardan), electric or mixed drives depending on operational needs.
• Temperature sensors: Measure and monitor product temperature during drying.

Models and technical data
Note: models grouped by working width. Each line: Model — Capacity (m³) — PTO power HP (kW) — Electric power (kW)

Width 2.25 m
ES 400 — 8 m³ — 30 (22) HP (kW) — 17 kW
ES 500 — 10 m³ — 35 (26) HP (kW) — 17.5 kW

Width 2.55 m
ES 600 — 11.5 m³ — 40 (30) HP (kW) — 21 kW
ES 900 — 15 m³ — 45 (34) HP (kW) — 25 kW
ES 1000 — 17 m³ — 50 (37) HP (kW) — 27 kW
ES 1150 — 19 m³ — 55 (41) HP (kW) — 31 kW

Width 3.2 m
ES 1350 — 21 m³ — 65 (49) HP (kW) — 37 kW
ES 1550 — 28.5 m³ — 70 (52) HP (kW) — 39 kW
ES 1750 — 32 m³ — 75 (56) HP (kW) — 42 kW

Width 4 m
ES 2250 — 44 m³ — 100 (75) HP (kW) — 54 kW
ES 2550 — 52 m³ — 100 (75) HP (kW) — 55 kW
ES 2650 — 58 m³ — 110 (82) HP (kW) — 57 kW
ES 3150 — 64 m³ — 150 (112) HP (kW) — 85 kW
ES 3550 — 75 m³ — 150 (112) HP (kW) — 85 kW
ES 3750 — 100 m³ — 150 (112) HP (kW) — 85 kW

Technical specifications

• Application: mobile dryers for cereals, legumes and seeds; suitable for organic supply chains and operations requiring traceability.
• Heat exchanger: stainless steel, separating combustion and drying air to prevent contamination.
• Boiler: compact, efficient design to reduce emissions and thermal losses.
• Drive options: PTO (cardan), electric or mixed drive according to needs.
• Control: centralized electrical panel in automatic or manual versions for full process management.
• Cleaning: expulsion cleaner for impurity removal.
• Sensors: temperature sensors to monitor product temperature during drying.
• Performance: continuous product movement and large exchange surface for fast, uniform drying.
• Model range: capacities from 8 m³ (ES 400) to 100 m³ (ES 3750).
• PTO power range: from 30 HP (22 kW) to 150 HP (112 kW) depending on model.
• Electric power range: from 17 kW to 85 kW depending on model.
