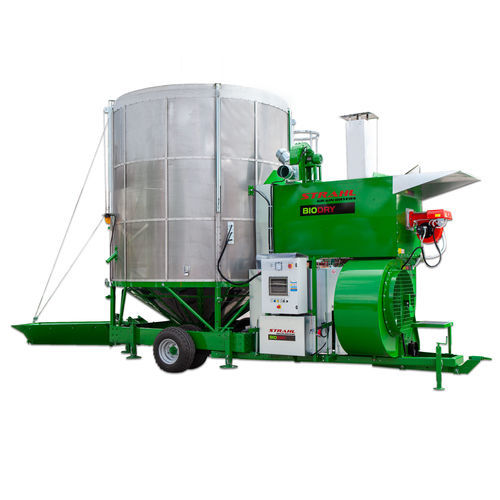

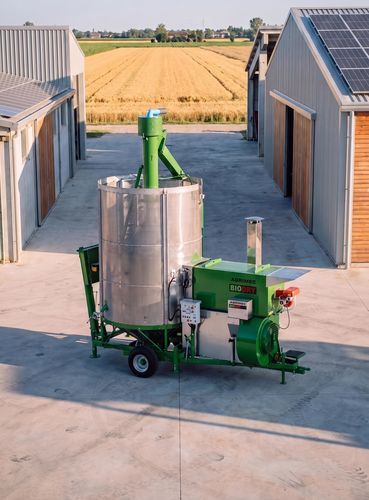

Cereal dryer BIODRY ES 2550

seedpaddy ricemobile

Overview
BIODRY is Strahl's series of mobile dryers for cereals, legumes and seeds that require clean, protected drying air, suitable for organic supply chains and operations focused on quality and traceability. An indirect combustion system with a stainless‑steel heat exchanger keeps combustion air separate from drying air, minimizing contamination risk and preserving organoleptic properties. The compact boiler and large exchanger reduce emissions and thermal losses while maximising thermal recovery, making the drying process more sustainable and cost‑effective for farms, contractors and processing facilities.

Key Benefits

• Clean drying air: Combustion air is fully separated from the drying air that contacts the product, meeting requirements for organic production.
• Energy recovery: Large stainless‑steel heat exchanger maximises thermal recovery and reduces fuel consumption at equivalent capacity.
• Uniform product quality: Continuous product movement inside the dryer promotes homogeneous drying and improves shelf life.
• Faster cycles: Design provides a large exchange surface between hot air and product for reduced drying times without compromising quality.

Main Components and Functions

• Loading hopper: Allows loading of the material to be dried and separation of unwanted elements.
• Central auger: Transports product upward and reintroduces it into the drying zone, facilitating discharge.
• Swivel discharge: Dried grain can be discharged by gravity or via an electrically driven auger when no slope is available.
• Heat exchanger: Keeps combustion air and drying air completely separate.
• Fan: Draws external air, channels it through the preheated furnace and sends it into the drum to reduce moisture.
• Expulsion cleaner: Removes impurities using a drop expulsion mechanism.
• Electrical panel (automatic/manual): Centralised control of dryer operations.
• Drive options: PTO (cardan), electric or mixed drives available according to operational needs.
• Temperature sensors: Measure and monitor product temperature during drying.

Models and Technical Table — Width 2.25 m
Model | Capacity m³ | PTO Power HP (kW) | Electric Power kW | Dimensional Drawings
ES 400 | 8 | 30 (22) | 17 | available
ES 500 | 10 | 35 (26) | 17.5 | available

Models and Technical Table — Width 2.55 m
Model | Capacity m³ | PTO Power HP (kW) | Electric Power kW | Dimensional Drawings
ES 600 | 11.5 | 40 (30) | 21 | available
ES 900 | 15 | 45 (34) | 25 | available
ES 1000 | 17 | 50 (37) | 27 | available
ES 1150 | 19 | 55 (41) | 31 | available

Models and Technical Table — Width 3.2 m
Model | Capacity m³ | PTO Power HP (kW) | Electric Power kW | Dimensional Drawings
ES 1350 | 21 | 65 (49) | 37 | available
ES 1550 | 28.5 | 70 (52) | 39 | available
ES 1750 | 32 | 75 (56) | 42 | available

Models and Technical Table — Width 4 m
Model | Capacity m³ | PTO Power HP (kW) | Electric Power kW | Dimensional Drawings
ES 2250 | 44 | 100 (75) | 54 | available
ES 2550 | 52 | 100 (75) | 55 | available
ES 2650 | 58 | 110 (82) | 57 | available
ES 3150 | 64 | 150 (112) | 85 | available
ES 3550 | 75 | 150 (112) | 85 | available
ES 3750 | 100 | 150 (112) | 85 | available

Technical specifications

• Series name: BIODRY (mobile dryers for cereals, legumes and seeds).
• Indirect combustion with stainless‑steel heat exchanger separating combustion air from drying air.
• Designed to preserve organoleptic qualities and support organic supply chain requirements.
• Compact boiler design to reduce atmospheric emissions and thermal energy losses.
• Large heat exchanger to maximise thermal recovery and reduce fuel consumption.
• Continuous product movement for uniform drying and improved shelf life.
• Multiple drive options: PTO (cardan), electric or mixed.
• Electrical panel available for centralised automatic or manual control.
• Temperature sensors for monitoring product temperature during drying.
• Range of models from ES 400 to ES 3750 covering capacities from 8 m³ up to 100 m³ and corresponding PTO/electric power ranges.
