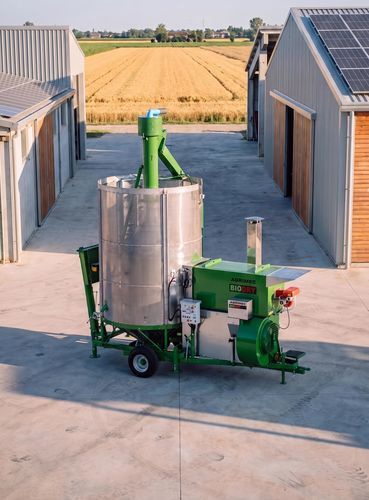

Grain dryer BIODRY ES 3750

cerealseedpaddy rice

Product overview
BIODRY is Strahl’s range of mobile dryers for cereals, legumes and seeds that require clean, protected drying air. The stainless‑steel heat exchanger keeps combustion air fully separate from the drying air in contact with the product, reducing contamination risk and preserving organoleptic properties. A compact, efficient boiler and optimized thermal recovery limit emissions and heat losses, supporting sustainable, cost‑effective drying for farms, contractors and processing facilities.

Key benefits

• Clean drying air: combustion air remains isolated from drying air that contacts the product, meeting requirements of organic supply chains.
• Energy efficiency: oversized heat exchanger maximizes thermal recovery and reduces fuel consumption at comparable capacity.
• Product homogeneity: continuous internal movement ensures uniform drying and improved shelf life.
• Reduced drying time: large exchange surface between hot air and product enables fast drying without compromising quality.

Main components and functions

• Loading hopper — receives product and enables separation of unwanted materials.
• Central auger — conveys product upward and reintroduces it into the drying zone, aiding discharge.
• Swivel discharge — allows gravity discharge or auger discharge with electric motor.
• Heat exchanger — stainless‑steel unit separating combustion air and drying air flows.
• Fan — draws external air, channels it through the preheated furnace and into the drying bell.
• Expulsion cleaner — removes impurities via a drop‑expulsion mechanism.
• Electrical panel (automatic/manual) — centralized control of dryer processes.
• Drive options (PTO and/or electric) — available with PTO, electric or mixed drive.
• Temperature sensors — monitor product temperature during drying.

Available models (tables: columns = Model | Capacity m³ | PTO Power HP (kW) | Electric Power kW)
Width 2.25 m
ES 400 | 8 | 30 (22) | 17
ES 500 | 10 | 35 (26) | 17.5

Width 2.55 m
ES 600 | 11.5 | 40 (30) | 21
ES 900 | 15 | 45 (34) | 25
ES 1000 | 17 | 50 (37) | 27
ES 1150 | 19 | 55 (41) | 31

Width 3.2 m
ES 1350 | 21 | 65 (49) | 37
ES 1550 | 28.5 | 70 (52) | 39
ES 1750 | 32 | 75 (56) | 42

Width 4 m
ES 2250 | 44 | 100 (75) | 54
ES 2550 | 52 | 100 (75) | 55
ES 2650 | 58 | 110 (82) | 57
ES 3150 | 64 | 150 (112) | 85
ES 3550 | 75 | 150 (112) | 85
ES 3750 | 100 | 150 (112) | 85

Technical characteristics / specifications

• Type: mobile indirect‑combustion dryers (BIODRY Series).
• Intended product: cereals, legumes and seeds requiring clean, protected drying air; suitable for organic supply chains.
• Drying method: indirect combustion with stainless‑steel heat exchanger separating combustion and drying air.
• Boiler: compact, efficient design to limit emissions and thermal losses.
• Energy recovery: large heat exchanger for optimized thermal recovery and lower fuel consumption.
• Product handling: continuous internal movement for uniform drying and improved quality.
• Discharge options: gravity discharge or auger with electric motor (swivel discharge).
• Cleaning: expulsion cleaner for impurity removal.
• Control: electrical panel in automatic or manual versions for centralized management.
• Drive options: PTO, electric or mixed drives available.
• Sensors: temperature sensors for monitoring during drying.
• Model range: capacities from 8 m³ to 100 m³ across multiple widths; see model table for details.
