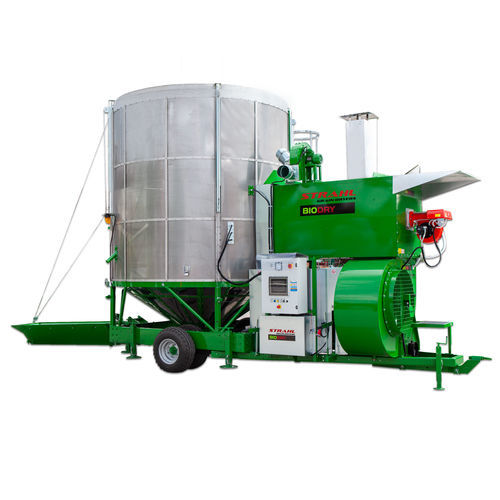

Grain dryer BIODRY ES 2250

cerealseedpaddy rice

Product overview
BIODRY is Strahl’s series of mobile indirect-fired dryers for cereals, legumes and seeds that require a clean, protected drying air stream. A stainless steel heat exchanger fully separates combustion air from drying air to minimise contamination risk and preserve organoleptic qualities. The compact, efficient boiler contains emissions and limits thermal losses, supporting more sustainable, cost-effective drying operations for farms, contractors and quality-focused facilities.

Key benefits

• Clean drying air: combustion air is kept separate from the drying air that contacts the product, suitable for organic supply chains and traceability requirements.
• Energy recovery: large stainless steel heat exchanger maximises thermal recovery and lowers fuel consumption per unit capacity.
• Uniform product quality: continuous internal recirculation promotes homogeneous drying and improved shelf life.
• Reduced drying time: extensive heat exchange surface enables faster moisture removal without compromising product quality.

Technical components (visualizer)

• Loading hopper: receives and feeds the product, allowing separation of unwanted elements.
• Central auger: conveys product upward and reintroduces it into the drying zone, aiding discharge.
• Swivel discharge: allows gravity discharge or, on flat sites, auger discharge driven by an electric motor.
• Heat exchanger: stainless steel unit that keeps combustion and drying air streams fully separate.
• Fan: draws ambient air, channels it through the preheated furnace and into the drying bell to reduce product moisture.
• Expulsion cleaner: removes impurities using a drop/expulsion mechanism.
• Electrical panel (automatic/manual): centralized control of dryer processes and modes.
• Drive options (PTO and/or electric): available as PTO (cardan), electric or mixed drive depending on operational needs.
• Temperature sensors: monitor product temperature throughout the drying cycle.

Available models (by width)
Width 2.25 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW | Dimensional drawings
ES 400 | 8 | 30 (22) | 17 | drawings available
ES 500 | 10 | 35 (26) | 17.5 | drawings available

Width 2.55 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW | Dimensional drawings
ES 600 | 11.5 | 40 (30) | 21 | drawings available
ES 900 | 15 | 45 (34) | 25 | drawings available
ES 1000 | 17 | 50 (37) | 27 | drawings available
ES 1150 | 19 | 55 (41) | 31 | drawings available

Width 3.2 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW | Dimensional drawings
ES 1350 | 21 | 65 (49) | 37 | drawings available
ES 1550 | 28.5 | 70 (52) | 39 | drawings available
ES 1750 | 32 | 75 (56) | 42 | drawings available

Width 4 m
Model | Capacity m³ | PTO power HP (kW) | Electric power kW | Dimensional drawings
ES 2250 | 44 | 100 (75) | 54 | drawings available
ES 2550 | 52 | 100 (75) | 55 | drawings available
ES 2650 | 58 | 110 (82) | 57 | drawings available
ES 3150 | 64 | 150 (112) | 85 | drawings available
ES 3550 | 75 | 150 (112) | 85 | drawings available
ES 3750 | 100 | 150 (112) | 85 | drawings available

Technical specifications

• Series name: BIODRY (mobile indirect-fired dryers).
• Manufacturer / brand: Strahl.
• Application: mobile dryers for cereals, legumes and seeds; suitable for organic supply chains and operations requiring protected drying air and traceability.
• Heat exchanger: stainless steel heat exchanger separating combustion and drying air.
• Boiler: compact, efficient design to reduce emissions and thermal losses.
• Energy recovery: large exchanger to maximise thermal recovery and reduce fuel consumption.
• Product handling: continuous recirculation for homogeneous drying and improved shelf life.
• Discharge options: gravity or auger-driven discharge with electric motor.
• Cleaning: expulsion cleaner removes impurities by drop/expulsion mechanism.
• Control: electrical panel available in automatic or manual versions for centralized process management.
• Drive options: PTO (cardan), electric or mixed drives depending on operational needs.
• Sensors: temperature sensors for monitoring product temperature during drying.
• Capacity range: models from ES 400 (8 m³) to ES 3750 (100 m³); dimensional drawings available for each model.
• PTO power range: approx. 30 HP (22 kW) to 150 HP (112 kW) depending on model.
• Electric power range: approx. 17 kW to 85 kW depending on model.
