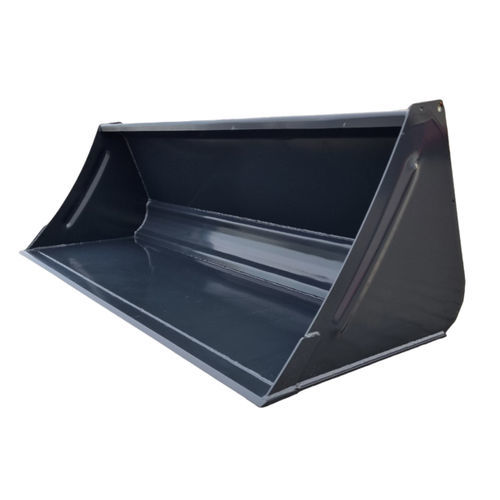

Shovel bucket 2008GA

Product Overview
The Universal bucket standard is a robust and versatile implement designed for various agricultural and material handling tasks. It is available in multiple versions and sizes to suit different operational needs.

Standard Equipment

• Standard version with a reinforcing rib, sheet thickness: sides 5mm, body: 4mm, height: 655mm; depth: 785mm
• G version with an insert, sheet thickness: sides 5 mm, body: 4mm, height: 655mm; depth: 785mm
• Bottom with flat bar reinforcement
• Brackets mounting reinforced with flat bar
• Blade 110x12mm (500hb)
• EURO mount

Optional Equipment

• Other type of brackets

Product Numbers

• 2008GA; 2002GA; 2005GA; 2003GA; 2004GA; 2006GA; 2007GA
• 2008A; 2002A; 2005A; 2003A; 2004A; 2006A; 2007A

Technical Specifications
Ref.No. Version G – version with an insert | Ref.No. Version with a reinforcing rib | Working width [m] | Capacity [m3] | Weight [kg]
2008GA | 2008A | 1.4 | 0.39 | 145
2002GA | 2002A | 1.5 | 0.42 | 150
2005GA | 2005A | 1.6 | 0.45 | 160
2003GA | 2003A | 1.8 | 0.50 | 180
2004GA | 2004A | 2.0 | 0.56 | 190
2006GA | 2006A | 2.2 | 0.62 | 205
2007GA | 2007A | 2.4 | 0.67 | 220

Key Features / Technical Specifications

• Available in standard and G versions (with insert)
• Sheet thickness: sides 5mm, body 4mm
• Height: 655mm
• Depth: 785mm
• Bottom and bracket reinforcements with flat bar
• Blade: 110x12mm (500hb)
• EURO mount as standard
• Optional brackets available
• Multiple working widths from 1.4m to 2.4m
• Capacities from 0.39 m³ to 0.67 m³
• Weights from 145 kg to 220 kg
