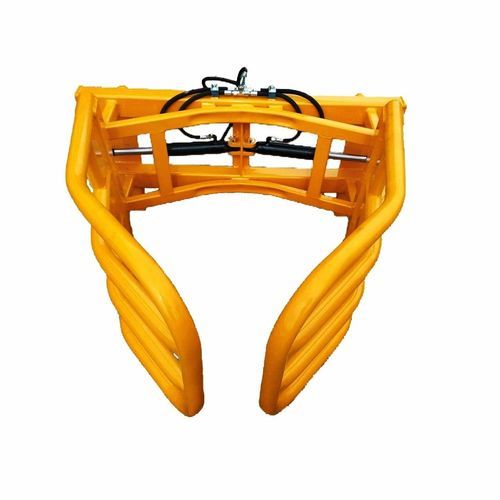

Round bale gripper 1910

Product Overview
The Bale grab, 2 cylinder, standard is a robust agricultural implement designed for efficient handling of round bales. Equipped with two double-acting cylinders and two movable arms, this bale grab ensures secure and stable transport of bales with diameters ranging from 0.9 to 1.8 meters.

Standard Equipment

• Length: 1161 mm
• Height: 740 mm
• Depth: 1365 mm
• Two double-acting cylinders
• 2 movable arms, tube Ø 60 mm x 3.0 mm
• Maximum opening: 2147 mm
• Supporting feet
• EURO mount

Optional Equipment

• Other types of brackets
• Hydraulic overflow valve
• Oil flow divider

Technical Specifications
Ref.No. | Bale diameter [m] | Loading capacity [kg] | Weight [kg]
1910 | 0.9-1.8 | 1000 | 200

Product Number
1910

Characteristics / Technical Specifications

• Ref.No.: 1910
• Bale diameter: 0.9–1.8 m
• Loading capacity: 1000 kg
• Weight: 200 kg
• Length: 1161 mm
• Height: 740 mm
• Depth: 1365 mm
• Max. opening: 2147 mm
• 2 double-acting cylinders
• 2 movable arms, tube Ø 60 mm x 3.0 mm
• Supporting feet
• EURO mount
• Optional: other brackets, hydraulic overflow valve, oil flow divider
