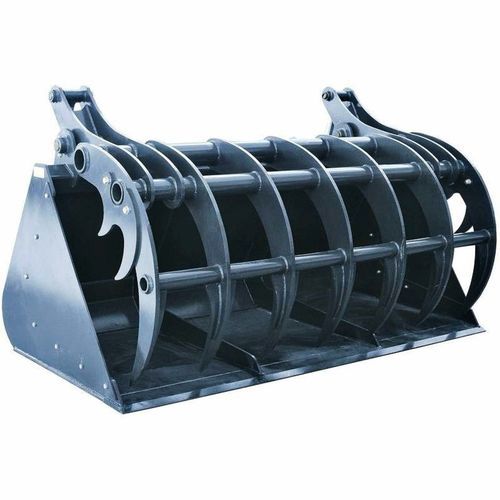

Heavy-duty shovel bucket 2745
Add to favorites
Compare this product
Characteristics
- Other characteristic
- heavy-duty
- Capacity
Max.: 2.78 m³
(98.17 ft³)Min.: 1.42 m³
(50.15 ft³)- Bucket weight
Max.: 1,120 kg
(2,469.18 lb)Min.: 810 kg
(1,785.74 lb)
Description
Product Overview
The Heavy-Duty Bucket with Grapple is a robust implement designed for heavy-duty material handling, featuring reinforced construction and multiple configuration options. It is suitable for agricultural and industrial applications requiring efficient loading, carrying, and gripping of bulk materials.
Standard Equipment
Optional Equipment
Product Numbers
Technical Specifications (Standard Versions)
Ref.No. | Working width [m] | Number of tines up [pcs.] | Capacity [m3] | Weight [kg]
2745 | 1.8 | 6 | 1.42 | 810
2746 | 2.0 | 6 | 1.58 | 855
2747 | 2.2 | 7 | 1.74 | 920
2748 | 2.4 | 7 | 1.90 | 955
2749 | 2.6 | 8 | 2.05 | 1000
Technical Specifications (Version M)
Ref.No. | Working width [m] | Number of tines up [pcs.] | Capacity [m3] | Weight [kg]
2746M | 2.0 | 6 | 2.14 | 1045
2747M | 2.2 | 6 | 2.35 | 1080
2748AM | 2.4 | 7 | 2.57 | 1100
2749M | 2.6 | 8 | 2.78 | 1120
Key Features / Technical Characteristics
The Heavy-Duty Bucket with Grapple is a robust implement designed for heavy-duty material handling, featuring reinforced construction and multiple configuration options. It is suitable for agricultural and industrial applications requiring efficient loading, carrying, and gripping of bulk materials.
Standard Equipment
- Standard version: height 1240mm, depth 1240mm, opening height 1360mm, upper teeth made of steel sheet S355, thickness 18mm, length 1150mm
- Version M: height 1410mm, depth 1410mm, opening height 1330mm, upper teeth made of steel S355, thickness 16mm, length 1260mm
- Shell thickness: 6mm, sides 12mm, sides tightened 10mm
- Bottom reinforced with 100x8 flat bars
- Blade: 200x20mm (500HB)
- Two cylinders
- EURO mount
Optional Equipment
- Oil flow divider
Product Numbers
- 2745
- 2746
- 2747
- 2748
- 2749
Technical Specifications (Standard Versions)
Ref.No. | Working width [m] | Number of tines up [pcs.] | Capacity [m3] | Weight [kg]
2745 | 1.8 | 6 | 1.42 | 810
2746 | 2.0 | 6 | 1.58 | 855
2747 | 2.2 | 7 | 1.74 | 920
2748 | 2.4 | 7 | 1.90 | 955
2749 | 2.6 | 8 | 2.05 | 1000
Technical Specifications (Version M)
Ref.No. | Working width [m] | Number of tines up [pcs.] | Capacity [m3] | Weight [kg]
2746M | 2.0 | 6 | 2.14 | 1045
2747M | 2.2 | 6 | 2.35 | 1080
2748AM | 2.4 | 7 | 2.57 | 1100
2749M | 2.6 | 8 | 2.78 | 1120
Key Features / Technical Characteristics
- Heavy-duty bucket with grapple for material handling
- Multiple working widths and capacities available
- Reinforced shell and sides for durability
- High-strength steel teeth (S355)
- Replaceable blade (500HB)
- Double hydraulic cylinders for secure operation
- EURO mounting system for compatibility
- Optional oil flow divider
