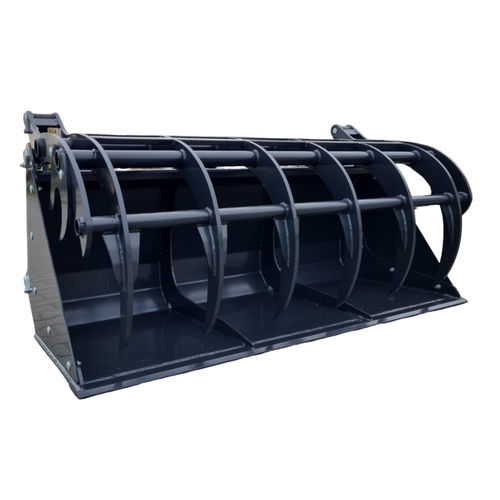

Shovel bucket 2073a

Product Overview
The Grab bucket with a clamp, standard, is a robust implement designed for efficient material handling in agricultural and industrial settings. It is available in both Standard and Volume versions, offering a range of working widths, capacities, and weights to suit various operational needs.

Standard Equipment

• Standard version: height 910 mm, depth 990 mm, body thickness 5 mm, sides 10 mm
• Blade: 110x16 mm (500hb), opening height 1180 mm, tooth length 820 mm, made of steel S355, 16 mm thickness
• S version: height 1025 mm, depth 1110 mm, body thickness 5 mm, screwed side walls 10 mm
• Blade: 150x16 mm (500hb), opening height 1300 mm, tooth length 920 mm, made of steel S355, 18 mm thickness
• Two hydraulic cylinders
• EURO mount

Optional Equipment

• Other types of brackets
• Hydraulic overflow valve set to a 90 bar pressure, adjustable

Technical Specifications

	Ref.No.	Working width [m]	Number of tines [pcs.]	Capacity [m3]	Weight [kg]
Standard-Version	2073a	1.5	5	0.66	365
	2074a	1.6	5	0.70	380
	2075a	1.8	6	0.79	395
	2076a	2.0	6	0.88	420
	2077a	2.2	7	0.97	450
	2078a	2.4	7	1.06	480
Volume-Version	2075sa	1.8	6	0.97	570
	2076sa	2.0	6	1.08	590
	2077sa	2.2	7	1.19	610
	2077asa	2.3	7	1.24	630
	2078sa	2.4	7	1.30	650

Product Numbers

• 2073a
• 2074a
• 2075a
• 2076a
• 2077a
• 2078a

Key Features / Technical Specifications

• Available in Standard and Volume versions
• Multiple working widths: 1.5 m to 2.4 m
• Capacities from 0.66 m³ to 1.30 m³
• Number of tines: 5 to 7 depending on model
• Body and blade constructed from high-strength steel (S355)
• Hydraulic clamp with two cylinders
• EURO mount as standard
• Optional hydraulic overflow valve and bracket types
