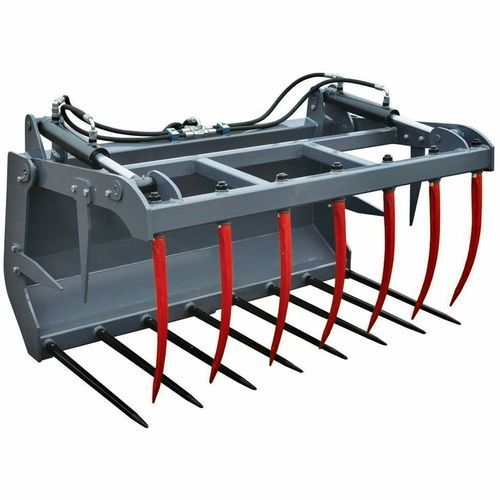

Silage fork 2041A

tractor-mounted

Product Overview
Forks with grapple standard are robust agricultural implements designed for efficient handling of various materials. They are equipped with hydraulic cylinders and forged tines, making them suitable for demanding tasks such as moving silage, manure, or bulk materials.

Standard equipment

• Height: 880 mm, depth: 1000 mm
• 2 hydraulic cylinders, tractor connection – 1 section, two hydraulic lines
• Opening height: 1174 mm
• Forged lower tines: 700 mm
• Forged upper tines: 680 mm
• EURO mount

Optional equipment

• Other type of brackets

Product number

• 2041A; 2042A; 2043A; 2044A; 2045A; 2046A; 2047A; 2048A

Technical Specifications
Ref.No | Working width [m] | Number of tines up [pcs.] | Number of tines bottom [pcs.] | Weight [kg] | Capacity [m3]
2041A | 1.2 | 6 | 7 | 255 | 0.63
2042A | 1.4 | 7 | 8 | 265 | 0.73
2043A | 1.5 | 7 | 8 | 275 | 0.78
2044A | 1.6 | 8 | 9 | 285 | 0.83
2045A | 1.8 | 8 | 9 | 305 | 0.94
2046A | 2.0 | 9 | 10 | 325 | 1.04
2047A | 2.2 | 10 | 11 | 345 | 1.14
2048A | 2.4 | 11 | 12 | 365 | 1.25

Key Features / Technical Specifications

• Height: 880 mm
• Depth: 1000 mm
• Opening height: 1174 mm
• Forged lower tines: 700 mm
• Forged upper tines: 680 mm
• 2 hydraulic cylinders
• EURO mount (standard)
• Optional: other type of brackets
• Multiple working widths and capacities available (see table above)
