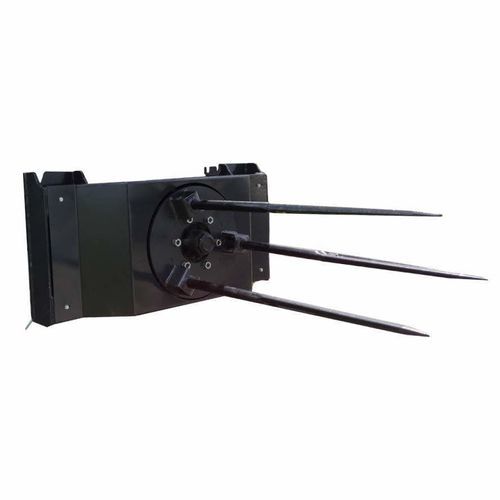

Bale spear 2933A

3-tine

Product Overview
The Bale unwinder with 3 tines is a robust agricultural implement designed for efficient handling and unwinding of bales. It is suitable for carrying one bale on tubular forks and two bales on tines, making it versatile for various bale management tasks.

Standard Equipment

• Length: 1250 mm
• Height: 1006 mm
• Depth: 1230 mm
• Rotary arms made of pipe 90 mm x 3 mm, length 1100 mm
• Two forged teeth, length: 1200 mm
• Arm spacing hydraulically adjustable in the range of 600-1478 mm
• Suitable for carrying 1 bale on tubular forks and 2 bales on tines
• EURO mount

Optional Equipment

• Other type of brackets

Technical Data Table
Ref.No. | Weight [kg] | Loading capacity [kg]
2933A | 180 | 1000

Product Number

• 1923

Characteristics / Technical Specifications

• Ref.No.: 2933A
• Weight: 180 kg
• Loading capacity: 1000 kg
• Dimensions: 1250 mm (L) x 1006 mm (H) x 1230 mm (D)
• Rotary arm: 90 mm x 3 mm pipe, 1100 mm length
• Forged teeth: 2 pcs, 1200 mm length
• Hydraulic arm spacing: 600-1478 mm
• Mount type: EURO
