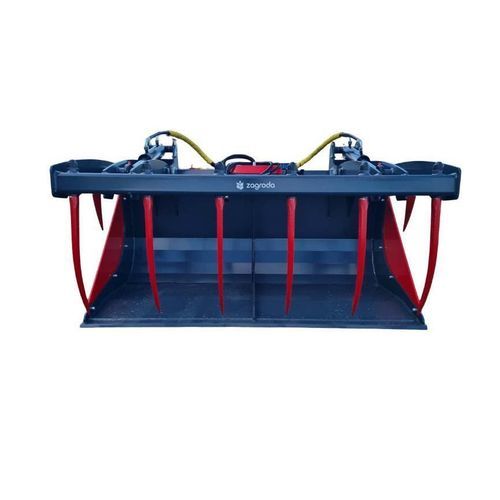

Shovel bucket 2061RX

The Bucket with grapple RX is a versatile attachment designed for efficient handling of various materials in agricultural and industrial settings. It is part of the RX Series and is available in multiple sizes to suit different operational needs.

Standard equipment

• Height: 880 mm; 900 mm
• Depth: 900 mm
• 2 hydraulic cylinders
• Forged upper tines: 680 mm
• Bottom thickness: 4 mm; 5 mm
• Steel sheet thickness (sides): 6 mm; 8 mm; 10 mm
• Blade: 100×10 mm; 100×15 mm
• EURO mount

Optional equipment

• Other type of mount

Available models and technical data

• Product number: 2061RX-2068RX

• 2061RX: Working width: 1.2 m, Number of tines: 5, Capacity: 0.5 m³, Weight: 191 kg
• 2062RX: Working width: 1.4 m, Number of tines: 6, Capacity: 0.6 m³, Weight: 205 kg
• 2063RX: Working width: 1.5 m, Number of tines: 6, Capacity: 0.75 m³, Weight: 284 kg
• 2064RX: Working width: 1.6 m, Number of tines: 6, Capacity: 0.8 m³, Weight: 302 kg
• 2065RX: Working width: 1.8 m, Number of tines: 7, Capacity: 0.9 m³, Weight: 332 kg
• 2066RX: Working width: 2.0 m, Number of tines: 8, Capacity: 1.0 m³, Weight: 351 kg
• 2067RX: Working width: 2.2 m, Number of tines: 9, Capacity: 1.1 m³, Weight: 372 kg
• 2068RX: Working width: 2.4 m, Number of tines: 10, Capacity: 1.2 m³, Weight: 470 kg

Technical specifications

• Series: RX Series
• Mount type: EURO (standard), other types optional
• Hydraulic cylinders: 2
• Forged upper tines length: 680 mm
• Bottom thickness: 4 mm or 5 mm
• Side steel sheet thickness: 6 mm, 8 mm, or 10 mm
• Blade dimensions: 100×10 mm or 100×15 mm
• Height: 880 mm or 900 mm
• Depth: 900 mm
