Shovel bucket 2780
Add to favorites
Compare this product
Characteristics
- Capacity
Max.: 0.54 m³
(19.07 ft³)Min.: 0.32 m³
(11.3 ft³)- Carrier weight
Max.: 240 kg
(529 lb)Min.: 165 kg
(364 lb)
Description
Product Overview

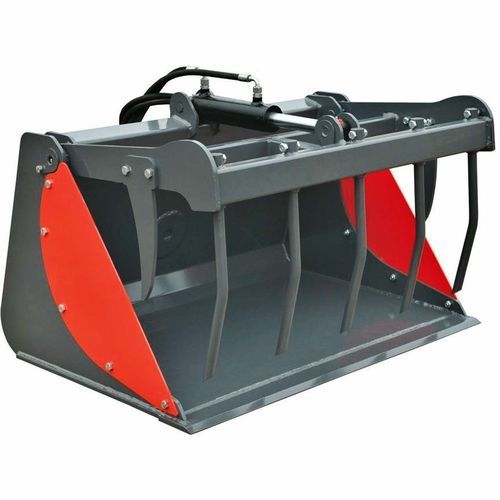

The Bucket with grabs for mini, any miniloader linkage is a versatile implement designed for use with mini loaders. It is engineered for efficient material handling, combining robust construction with practical features for various applications.
Standard Equipment
Optional Equipment
Product Numbers
Technical Specifications
Ref. No. | Working width [m] | Number of tines [pcs.] | Capacity [m³] | Weight [kg]
2780 | 0.9 | 4 | 0.32 | 165
2781 | 1.1 | 5 | 0.40 | 190
2782 | 1.2 | 6 | 0.43 | 200
2783 | 1.4 | 7 | 0.50 | 230
2784 | 1.5 | 7 | 0.54 | 240
Key Features / Technical Specifications
The Bucket with grabs for mini, any miniloader linkage is a versatile implement designed for use with mini loaders. It is engineered for efficient material handling, combining robust construction with practical features for various applications.
Standard Equipment
- Dimensions: height 716mm, depth 840mm
- Sheet thickness: body 5mm, sides 10mm
- Opening height: 942mm
- Forged upper teeth: 585mm
- Blade: 110x12mm (500hb)
- For width 0.9m – 1.2m: 1 cylinder; for width above 1.5m: 2 cylinders
- EURO mount
Optional Equipment
- Hydraulic valve
Product Numbers
- 2780
- 2781
- 2782
- 2783
- 2784
Technical Specifications
Ref. No. | Working width [m] | Number of tines [pcs.] | Capacity [m³] | Weight [kg]
2780 | 0.9 | 4 | 0.32 | 165
2781 | 1.1 | 5 | 0.40 | 190
2782 | 1.2 | 6 | 0.43 | 200
2783 | 1.4 | 7 | 0.50 | 230
2784 | 1.5 | 7 | 0.54 | 240
Key Features / Technical Specifications
- Height: 716mm
- Depth: 840mm
- Sheet thickness: body 5mm, sides 10mm
- Opening height: 942mm
- Forged upper teeth: 585mm
- Blade: 110x12mm (500hb)
- EURO mount compatibility
- Hydraulic valve (optional)
- Available in multiple working widths (0.9m to 1.5m)
- Capacity range: 0.32 to 0.54 m³
- Weight range: 165 to 240 kg
