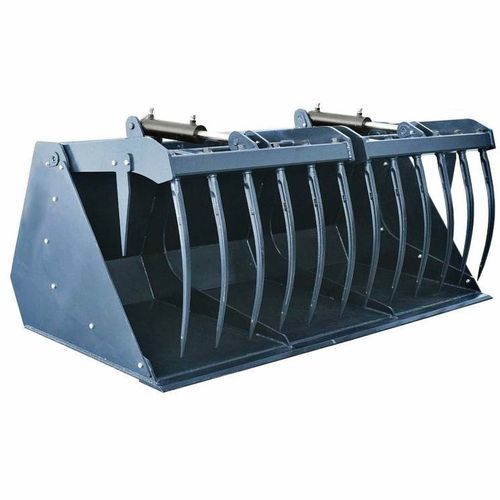

Combination shovel bucket 2740
Add to favorites
Compare this product
Characteristics
- Type
- combination
- Capacity
Max.: 1.87 m³
(66.04 ft³)Min.: 1.3 m³
(45.91 ft³)- Bucket weight
Max.: 680 kg
(1,499.14 lb)Min.: 515 kg
(1,135.38 lb)
Description
Product Overview
The Heavy Duty Bucket with Grabs is a robust implement designed for demanding agricultural and industrial applications. It is engineered to handle heavy materials efficiently, offering a combination of strength, durability, and versatility.
Standard Equipment
Optional Equipment
Product Numbers
Technical Specifications
Ref.No. | Working width [m] | Number of tines up [pcs.] | Capacity [m3] | Weight [kg]
2740 | 1.8 | 8 | 1.30 | 515
2741 | 2.0 | 10 | 1.44 | 545
2742 | 2.2 | 10 | 1.58 | 590
2743 | 2.4 | 11 | 1.73 | 635
2744 | 2.6 | 12 | 1.87 | 680
Key Features / Technical Specifications
The Heavy Duty Bucket with Grabs is a robust implement designed for demanding agricultural and industrial applications. It is engineered to handle heavy materials efficiently, offering a combination of strength, durability, and versatility.
Standard Equipment
- Height: 850 mm
- Depth: 1150 mm
- Sheet thickness: cover 6 mm, sides 8 and 12 mm
- From 2.0 m width, the bucket is divided in the middle
- Blade: 150x20 mm (500HB)
- Opening height: 1532 mm
- Upper teeth forged: 770 mm
- Two hydraulic cylinders
- EURO mount
Optional Equipment
- Other types of brackets available
Product Numbers
- 2740
- 2741
- 2742
- 2743
- 2744
Technical Specifications
Ref.No. | Working width [m] | Number of tines up [pcs.] | Capacity [m3] | Weight [kg]
2740 | 1.8 | 8 | 1.30 | 515
2741 | 2.0 | 10 | 1.44 | 545
2742 | 2.2 | 10 | 1.58 | 590
2743 | 2.4 | 11 | 1.73 | 635
2744 | 2.6 | 12 | 1.87 | 680
Key Features / Technical Specifications
- Heavy-duty construction for demanding tasks
- Multiple working widths available (1.8 m to 2.6 m)
- High capacity (1.30 m³ to 1.87 m³)
- Forged upper teeth and robust blade for efficient material handling
- Hydraulic operation with two cylinders
- EURO mount as standard, with optional brackets
- Product numbers: 2740, 2741, 2742, 2743, 2744
