- Farm Machinery
- Transport & Lifting
- Heavy-duty shovel bucket
- ZAGRODA INTERNATIONAL Sp. z o.o.

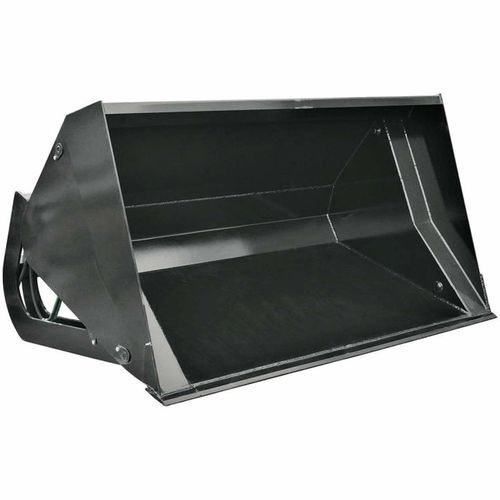

Heavy-duty shovel bucket 2720
Add to favorites
Compare this product
Characteristics
- Other characteristic
- heavy-duty
- Capacity
Min.: 1.84 m³
(64.98 ft³)Max.: 2.76 m³
(97.47 ft³)- Bucket weight
Min.: 915 kg
(2,017.23 lb)Max.: 1,180 kg
(2,601.45 lb)
Description
Product Overview
The High Tip Bucket Heavy Duty is designed for telehandlers, offering enhanced capacity and durability for demanding material handling tasks. It is engineered for heavy-duty applications, providing reliable performance and a range of working widths and capacities.
Standard Equipment
Optional Equipment
Product Numbers
Technical Specifications
Ref.No. | Working width [m] | Capacity [m³] | Weight [kg]
2720 | 1.8 | 1.84 | 915
2721 | 2.0 | 2.07 | 980
2722 | 2.2 | 2.30 | 1045
2724 | 2.5 | 2.53 | 1145
2724A | 2.6 | 2.76 | 1180
Key Features / Technical Specifications
The High Tip Bucket Heavy Duty is designed for telehandlers, offering enhanced capacity and durability for demanding material handling tasks. It is engineered for heavy-duty applications, providing reliable performance and a range of working widths and capacities.
Standard Equipment
- Height: 1180mm
- Depth: 1310mm
- Total depth with arms: 1730mm
- Sheet thickness (body): 6mm
- Sheet thickness (sides): 8mm
- Thickness (arms): 15mm
- Blade: 150 x 15mm (400HB)
- Bottom reinforced with a flat bar
- Two cylinders
- EURO mount
Optional Equipment
- Other types of brackets
Product Numbers
- 2720
- 2721
- 2722
- 2724
- 2724A
Technical Specifications
Ref.No. | Working width [m] | Capacity [m³] | Weight [kg]
2720 | 1.8 | 1.84 | 915
2721 | 2.0 | 2.07 | 980
2722 | 2.2 | 2.30 | 1045
2724 | 2.5 | 2.53 | 1145
2724A | 2.6 | 2.76 | 1180
Key Features / Technical Specifications
- Heavy-duty construction for demanding applications
- Multiple working widths and capacities available
- Reinforced bottom and robust blade for durability
- EURO mount as standard, with optional brackets
- Suitable for telehandlers and similar machinery
