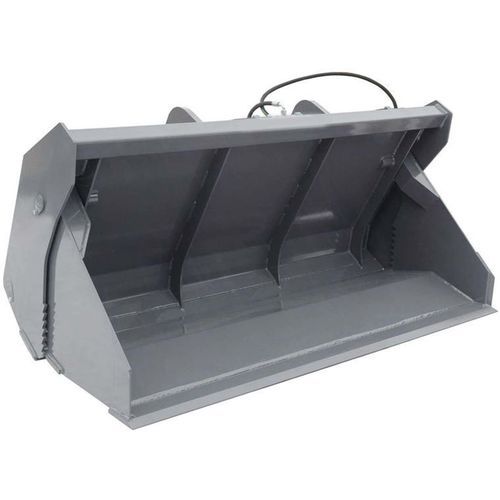

Heavy-duty shovel bucket 2735
Add to favorites
Compare this product
Characteristics
- Other characteristic
- heavy-duty
- Capacity
0.63 m³, 0.7 m³, 0.77 m³, 0.84 m³
(22.25 ft³, 24.72 ft³, 27.19 ft³, 29.66 ft³)- Bucket weight
545 kg, 570 kg, 600 kg, 630 kg
(1,201.52 lb, 1,256.63 lb, 1,322.77 lb, 1,388.91 lb)
Description
Product Overview
The 4-in-1 Heavy Bucket is a robust and versatile implement designed for demanding agricultural and industrial applications. It features a heavy-duty construction with multiple working widths and capacities, making it suitable for a range of tasks.
Standard Equipment
Optional Equipment
Technical Specifications
Ref.No. | Working width [m] | Capacity [m3] | Number of tines [pcs.] | Weight [kg]
2735 | 1.8 | 0.63 | 5 | 545
2736 | 2.0 | 0.70 | 6 | 570
2737 | 2.2 | 0.77 | 7 | 600
2738 | 2.4 | 0.84 | 8 | 630
Product Numbers
Key Features / Technical Characteristics
The 4-in-1 Heavy Bucket is a robust and versatile implement designed for demanding agricultural and industrial applications. It features a heavy-duty construction with multiple working widths and capacities, making it suitable for a range of tasks.
Standard Equipment
- Height: 930mm, depth: 1025mm
- Sheet thickness: body 10mm
- Sheet thickness: bottom 10 mm
- Sheet thickness: sides and reinforcing ribs 10mm and 12mm
- Blade: 150 x 20mm (400hb)
- Opening height: 730mm
- EURO mount
Optional Equipment
- Heavy tines with 285mm spacing, on a 150×20 blade
- Oil flow divider
Technical Specifications
Ref.No. | Working width [m] | Capacity [m3] | Number of tines [pcs.] | Weight [kg]
2735 | 1.8 | 0.63 | 5 | 545
2736 | 2.0 | 0.70 | 6 | 570
2737 | 2.2 | 0.77 | 7 | 600
2738 | 2.4 | 0.84 | 8 | 630
Product Numbers
- 2735
- 2736
- 2737
- 2738
Key Features / Technical Characteristics
- Heavy-duty construction for intensive use
- Multiple working widths and capacities available
- Reinforced with thick steel sheets and ribs
- High opening height for versatile operation
- Compatible with EURO mount systems
- Optional heavy tines and oil flow divider for enhanced performance
