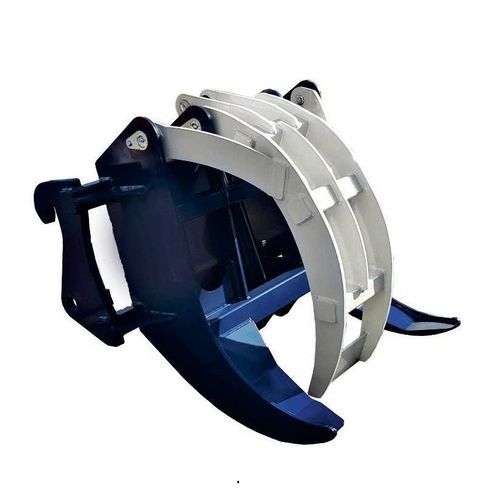

Forestry log grapple YANKEE 1,1T

agriculturalhandling

Product Overview
The Wood grapple YANKEE 1,1t is a robust and efficient tool designed for handling wood and logs. It is engineered for durability and optimal performance in forestry and agricultural applications.

Standard Equipment

• Height: 937 mm
• Depth: 673 mm
• Gripping range: 120 mm up to 675 mm
• Bottom fork spacing: 685 mm
• Hydraulic lock (protection against pressure drop during operation)
• EURO mount

Optional Equipment

• Other type of mount

Technical Data Table
REF.NO. | Model | WORKING WIDTH [M] | CAPACITY [KG] | WEIGHT [KG]
2200a | YANKEE 1,1T | 0.7 | 1100 | 160

Product Number

• 2200a

Characteristics / Technical Specifications

• Model: YANKEE 1,1T
• Working width: 0.7 m
• Capacity: 1100 kg
• Weight: 160 kg
• Height: 937 mm
• Depth: 673 mm
• Gripping range: 120 mm to 675 mm
• Bottom fork spacing: 685 mm
• Hydraulic lock for safety
• EURO mount as standard, other mounts optional
