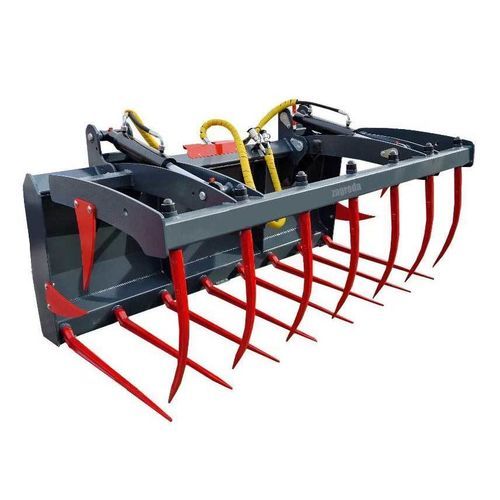

Silage grab 2041RX

The Crocodile Clamp RX is a versatile attachment for agricultural machinery, known for its robust construction and flexible applications. Available in multiple variants with different working widths, volumes, and weights, it is ideal for gripping and transporting various materials.

Standard Equipment

• 2 hydraulic cylinders
• Height: 800 mm to 900 mm, Depth: 900 mm
• Opening height: 980 mm to 1030 mm
• Lower tines forged: 880 mm
• Upper tines forged: 680 mm
• EURO mount

Optional Equipment

• Other mounting types

Available Variants (Product Numbers 2041RX to 2048RX)

• 2041RX: Working width 1.2 m, Volume 0.50 m³, Weight 174 kg
• 2042RX: Working width 1.4 m, Volume 0.60 m³, Weight 190 kg
• 2043RX: Working width 1.5 m, Volume 0.75 m³, Weight 236 kg
• 2044RX: Working width 1.6 m, Volume 0.8 m³, Weight 249 kg
• 2045RX: Working width 1.8 m, Volume 0.90 m³, Weight 266 kg
• 2046RX: Working width 2.0 m, Volume 1.00 m³, Weight 300 kg
• 2047RX: Working width 2.2 m, Volume 1.10 m³, Weight 315 kg
• 2048RX: Working width 2.4 m, Volume 1.20 m³, Weight 375 kg

Technical Data / Specifications

• Product Numbers: 2041RX-2048RX
• Category: RX Series
• Standard Equipment: 2 hydraulic cylinders, EURO mount, forged tines
• Optional Equipment: other mounting types
• Height: 800–900 mm
• Depth: 900 mm
• Opening height: 980–1030 mm
• Lower tines: 880 mm
• Upper tines: 680 mm
