Forestry log grapple CRANCR-1

for cranesfor excavatorshandling

Product summary

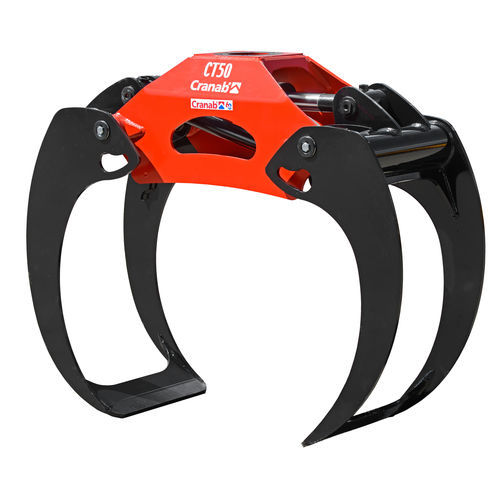

The Cranab CT Series grapples are designed for use on trucks and cranes and are available in three sizes: CT35, CT40 and CT50. The CT35 is the smallest model and is suitable for applications with smaller trucks and cranes where compact dimensions and agility are required. The CT40 is the standard model for most truck-crane operations. The CT50 is the largest on-road model, intended to maximise each grab load and maintain high working tempo. All models feature excellent roll-in, high penetration and wide opening and are manufactured from extra high strength steel.

Short description
Truck and crane log handling grapples available in CT35, CT40 and CT50 sizes, max working pressure 250 bar.

Specifications (table)
Grapple Type | CT35 | CT40 | CT50
Max working pressure (bar) | 250 | 250 | 250
Weight (kg) | 230 | 250 | 265
Gripping Area (m3) | 0.32 | 0.40 | 0.50
Max. Jaw Opening (mm) | 1818 | 1978 | 2079
Min Grip diameter (mm) | 130 | 129 | 170
Jaw Width (mm) | 499 | 499 | 499
Fully Open Height (mm) | 804 | 885 | 957
Fully Closed Height (mm) | 977 | 1065 | 1123
Max load (kg) | 4000 | 4000 | 4000

Technical features / specifications

• Brand: Cranab
• Series / Model designation: CT series (CT35, CT40, CT50)
• Intended use: truck and crane log handling; suitable models available for forwarders, timber trucks and excavators
• Maximum working pressure: 250 bar (all models)
• Weight: CT35 = 230 kg; CT40 = 250 kg; CT50 = 265 kg
• Gripping area: CT35 = 0.32 m3; CT40 = 0.40 m3; CT50 = 0.50 m3
• Maximum jaw opening: CT35 = 1818 mm; CT40 = 1978 mm; CT50 = 2079 mm
• Minimum grip diameter: CT35 = 130 mm; CT40 = 129 mm; CT50 = 170 mm
• Jaw width (all models): 499 mm
• Fully open / closed heights as specified above
• Maximum load capacity: 4000 kg (all models)
• Construction material: extra high strength steel
• SKU (page): CRANCR-1
